Festo DSNU Series Pneumatic Round Cylinder

Description

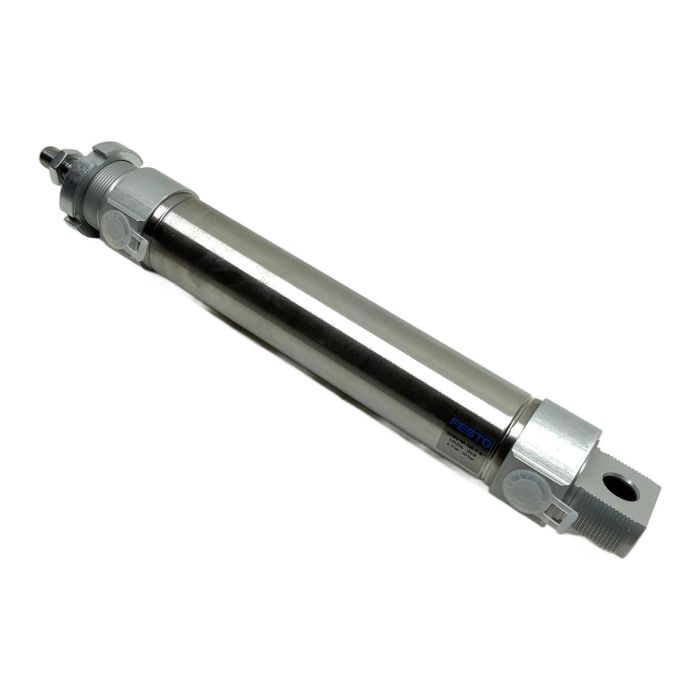

The DSNU-40-160-P-A is a high-quality, double-acting pneumatic round cylinder from Festo, designed to meet the rigorous demands of industrial automation. Conforming to the ISO 6432 standard, this cylinder ensures reliability and interchangeability. It is equipped with elastic cushioning at both ends to reduce impact and noise, as well as a magnet for position sensing with proximity sensors.

Specifications

• Manufacturer: Festo
• Series: DSNU
• Piston Diameter: 40 mm
• Stroke: 160 mm
• Action: Double-acting
• Cushioning: Elastic cushioning rings/plates at both ends (P)
• Position Sensing: With magnet for proximity sensors (A)
• Maximum Operating Pressure: 10 bar
• Standards: Based on ISO 6432

Label Info

• Type: DSNU-40-160-P-A
• Part Number: 195996
• Date Code: JN08

Application

This cylinder is ideally suited for applications requiring precise linear motion, such as clamping, positioning, sorting, and material handling in various industries including manufacturing, packaging, and assembly lines.

Country of Origin

Germany

CO2 Impact

By purchasing this refurbished or surplus cylinder, you are contributing to a circular economy and avoiding approximately 4.6 kg of CO2 emissions associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the '-P-A' suffix in the type number DSNU-40-160-P-A signify?

The '-P' indicates that the cylinder is equipped with elastic cushioning rings at both ends of the stroke. This helps to reduce noise and absorb impact energy at the end positions. The '-A' signifies that the cylinder has a permanent magnet on the piston, making it suitable for position sensing with external proximity sensors.

Question?
Is this cylinder suitable for use in a food processing environment?

The standard DSNU cylinder has a high-alloy steel barrel and die-cast aluminum end caps. While it offers good corrosion resistance, for direct food contact or washdown areas, Festo typically recommends specific variants with higher-grade stainless steel (like the CRDSNU series) and food-grade lubricants. Always check the specific requirements of your application.

Question?
What is the required air quality for the DSNU-40-160-P-A to ensure a long service life?

Festo specifies compressed air in accordance with ISO 8573-1:2010 [7:4:4]. This means the air should be filtered to remove solid particles, water, and oil. Using properly prepared air (e.g., with a Festo FRL unit) is crucial to prevent premature wear of the seals and ensure reliable operation. Both lubricated and non-lubricated operation is possible.
