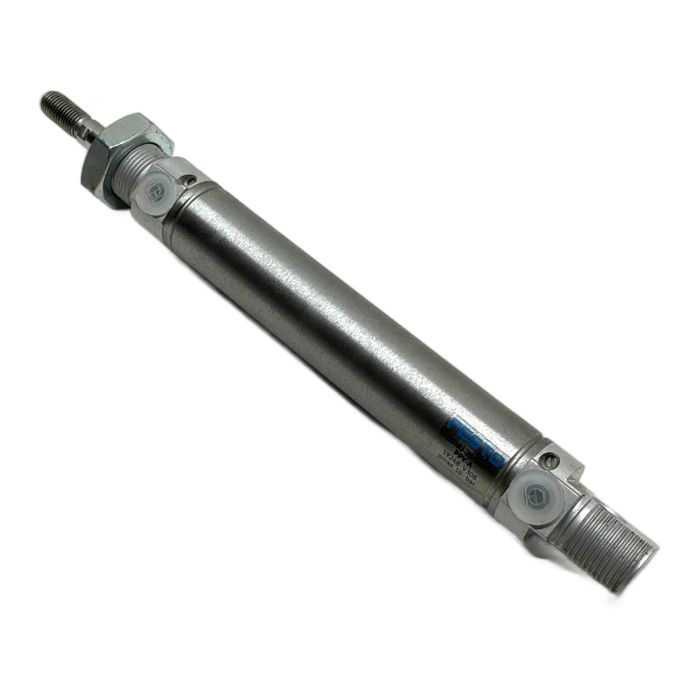

Festo DSNU-25-100-PPV-A Pneumatic Cylinder

Description

The Festo DSNU-25-100-PPV-A is a high-quality, double-acting pneumatic round cylinder compliant with the ISO 6432 standard. It is engineered for precision and durability, making it suitable for a wide range of automation tasks. This cylinder features adjustable pneumatic cushioning at both ends to ensure smooth operation and reduced mechanical stress.

Specifications

• Manufacturer: Festo
• Part Number: 19248
• Type: DSNU-25-100-PPV-A
• Piston Diameter (Bore): 25 mm
• Stroke Length: 100 mm
• Mode of Operation: Double-acting
• Cushioning: PPV (Pneumatic cushioning, adjustable at both ends)
• Position Detection: With magnetic piston for proximity sensors
• Operating Pressure: 0.6 to 10 bar
• Piston Rod Thread: M10 x 1.25
• Materials: High-alloy stainless steel barrel and piston rod

Label Info

• Brand: FESTO
• Model: DSNU-25-100-PPV-A
• ID: 19248 V308
• Max Pressure: pmax. 10 bar

Application

This cylinder is ideal for applications in factory automation, material handling, packaging machinery, and assembly lines where reliable linear motion and precise positioning are required.

Country of Origin

Germany

CO2 Impact

Opting for this component saves approximately 1.8 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a standard car for 9 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the purpose of the 'PPV' designation in the model number?

'PPV' stands for adjustable pneumatic cushioning at both ends of the cylinder. This feature allows you to control the deceleration of the piston as it reaches the end of its stroke, reducing impact, noise, and vibration, which extends the life of the cylinder and the machine it is installed in.

Yes, the '-A' suffix in the model number indicates that the cylinder is equipped with a magnetic piston. This allows for contactless position sensing using proximity sensors, such as Festo's SME or SMT series, which can be mounted on the cylinder body.

For best performance and longevity, Festo recommends compressed air in accordance with ISO 8573-1:2010 [7:4:4]. This means the air should be filtered to 40 micrometers and be suitably dry. Both lubricated and non-lubricated operation is possible.
