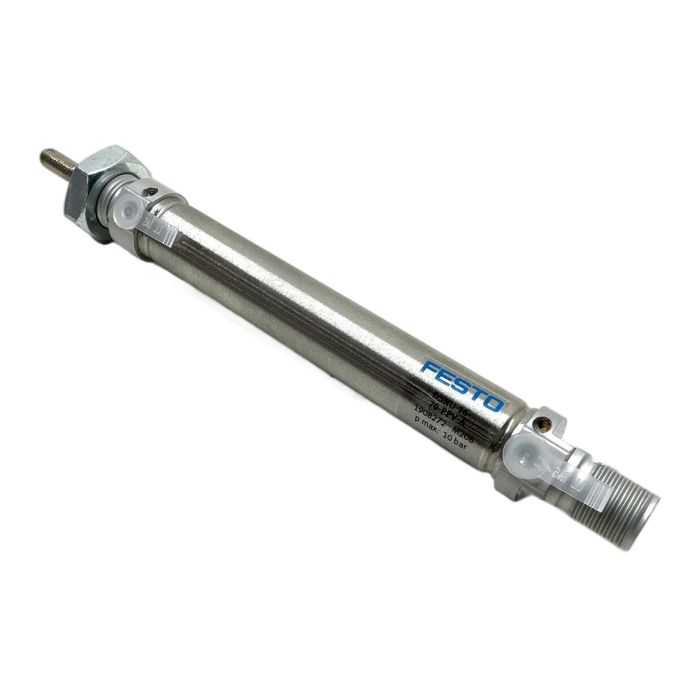

Festo DSNU-16-70-PPV-A Pneumatic Cylinder

Description

The Festo DSNU-16-70-PPV-A is a standard round cylinder compliant with ISO 6432. It is engineered for high performance and durability in various industrial automation applications. This double-acting cylinder features a 16 mm piston diameter and a 70 mm stroke, providing precise linear movement. The integrated adjustable pneumatic cushioning (PPV) at both ends ensures smooth operation and reduces wear, while the magnetic piston allows for easy position sensing.

Specifications

• Manufacturer: Festo
• Model: DSNU-16-70-PPV-A
• Part Number: 1908272
• Type: Double-acting Round Cylinder
• Standard: ISO 6432
• Piston Diameter: 16 mm
• Stroke: 70 mm
• Cushioning: Adjustable pneumatic cushioning (PPV)
• Maximum Operating Pressure: 10 bar
• Piston Rod Thread: M6

Label Info

• FESTO
• DSNU-16-70-PPV-A
• 1908272 M208
• p max: 10 bar

Application

This cylinder is ideal for applications in packaging, assembly, material handling, and general machine building where reliable and precise linear motion is required in a compact form factor.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you contribute to the circular economy and avoid approximately 5.0 kg of CO2 emissions that would be generated from manufacturing a new one.

Availability

Available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'PPV' indicates that the cylinder is equipped with adjustable pneumatic cushioning at both ends. This allows you to control the deceleration of the piston at the end of its stroke, reducing impact, noise, and vibration, which extends the life of the cylinder and the machine.

Yes, the '-A' suffix in the model number signifies that the cylinder contains a permanent magnet on the piston. This allows you to use magnetic proximity sensors (like the Festo SME or SMT series) mounted on the cylinder barrel to detect the piston's position without physical contact.

According to the ISO 6432 standard for a 16mm bore cylinder, the piston rod has an M6 male thread. This is a standard size for attaching clevises, joints, or other tooling.
