Festo DSNU Series Pneumatic Cylinder

Description

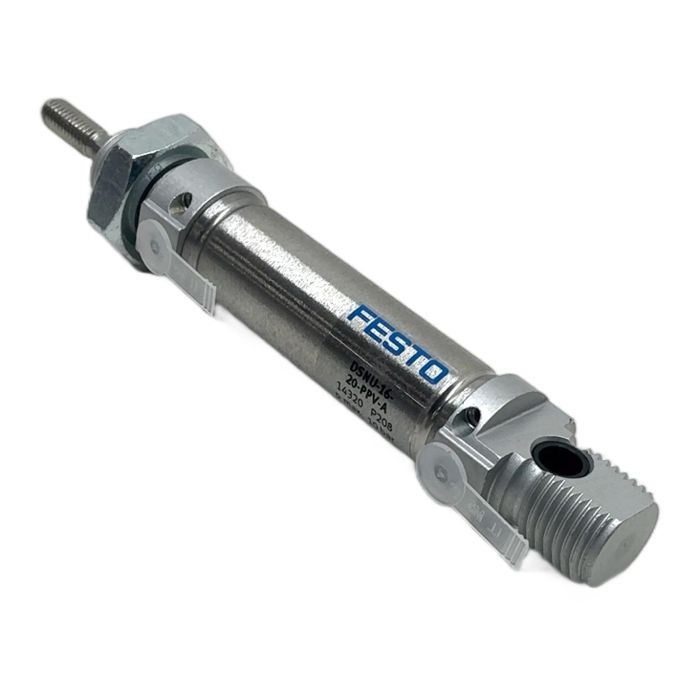

This is a DSNU-16-20-PPV-A round cylinder from Festo, a leading manufacturer in automation technology. It is a double-acting cylinder designed according to the ISO 6432 standard, ensuring interchangeability and high performance. With a 16 mm piston diameter and a 20 mm stroke, it is suitable for a variety of industrial applications requiring precise linear motion.

Specifications

• Manufacturer: Festo
• Type: DSNU-16-20-PPV-A
• Part Number: 14320
• Action: Double-acting
• Piston Diameter: 16 mm
• Stroke: 20 mm
• Cushioning: Adjustable pneumatic cushioning at both ends (PPV)
• Position Sensing: With magnet for proximity sensors (-A)
• Maximum Operating Pressure: 10 bar
• Standard: Conforms to ISO 6432
• Piston Rod Thread: M6

Label Info

• Brand: FESTO
• Model: DSNU-16-20-PPV-A
• Part Nr: 14320
• Series Code: P208
• Max Pressure: p max: 10 bar

Application

Ideal for use in sorting, clamping, feeding, and general handling tasks within factory automation, packaging machinery, and material handling systems where space is limited but reliable actuation is critical.

Country of Origin

This product is manufactured by Festo in Germany.

CO2 Impact

By purchasing this reconditioned cylinder, you avoid the production of a new one, saving an estimated 0.7 kg of CO2. This saving is comparable to the emissions from driving a standard car for 3.5 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

PPV stands for adjustable pneumatic cushioning at both ends. This feature allows you to control the deceleration of the piston at the end of its stroke by adjusting small screws on the end caps. It prevents hard impacts, reduces noise and vibration, and allows for higher operating speeds.

The '-A' signifies that the cylinder's piston contains a permanent magnet. This allows for contactless position sensing using magnetic proximity sensors, such as Festo's SME or SMT series sensors, which can be mounted on the cylinder body.

According to the ISO 6432 standard for this bore size, the male piston rod thread is M6. This is important for connecting attachments, clevises, or other mechanical linkages to the cylinder.
