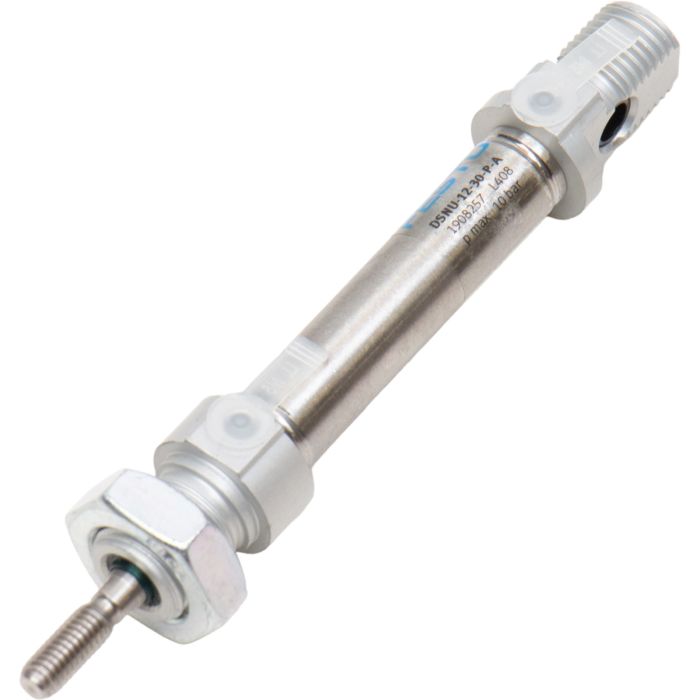

ISO cylinder, GTIN: 4052568108380, Technical Data; Stroke; 30 mm, Piston diameter; 12 mm, Piston rod thread; M6, Cushioning; Elastic cushioning rings/plates at both ends, Mounting position; optional, Conforms to standard; CETOP RP 52 P, ISO 6432; Piston-rod end, Male thread, Design: Piston, Piston rod, Cylinder barrel; Position detection, Via proximity switch, Symbol; 00991217, Variants; Piston rod at one end, Operating pressure; 0.15 MPa ... 1 MPa, Operating pressure; 1.5 bar ... 10 bar, Mode of operation; Double-acting, Operating medium; Compressed air to ISO 8573-1:2010 [7:4:4], Note on operating and pilot medium; Lubricated operation possible (in which case lubricated operation will always be required), Corrosion resistance class CRC; 2 - Moderate corrosion stress, LABS (PWIS) conformity; VDMA24364-B1/B2-L, Cleanroom class, Class 6 according to ISO 14644-1; Ambient temperature; -20 °C ... 80 °C, Impact energy in end positions; 0.07 J,al force at 0.6 MPa (6 bar, 87 psi), return stroke; 50.9 N,l force at 0.6 MPa (6 bar, 87 psi), advance stroke; 67.9 N, Moving mass for 0 mm stroke; 18.5 g, Additional moving mass per 10 mm stroke; 2 g, Basic weight for 0 mm stroke; 75 g, Additional weight per 10 mm stroke; 4 g, Type of mounting; With accessories, Pneumatic connection; Note on materials, RoHS-compliant; Material cover; Wrought aluminium alloy, Colourless anodised; Material seals; NBR, TPE-U(PU); Material piston rod, High-alloy stainless steel; Material cylinder barrel; High-alloy stainless steel.
