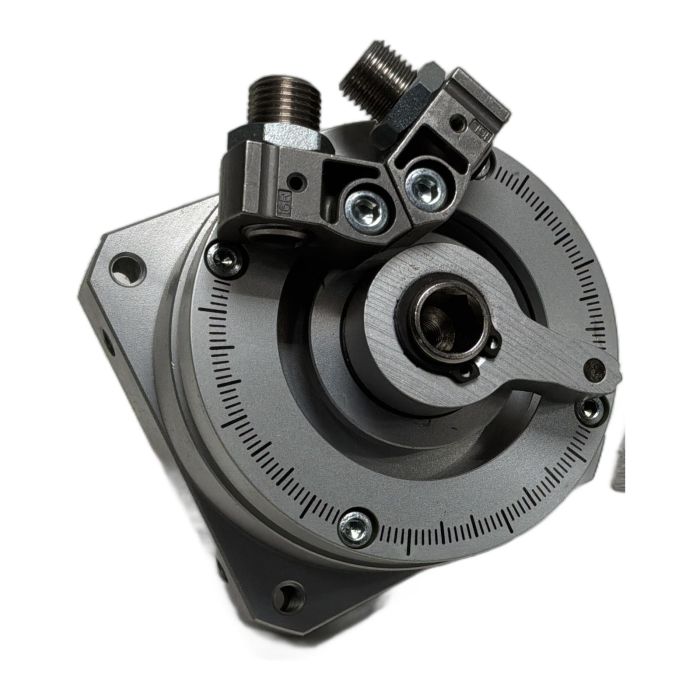

Festo DSM-16-270-P-A-B Semi-Rotary Drive

Product Description

This Festo DSM-16-270-P-A-B semi-rotary drive is designed to provide precise rotary motion in automated systems. With a swivel angle of 270 degrees, it is ideal for applications such as swiveling, rotating, and aligning parts in assembly lines, material handling, and robotics.

Product Specifications

Manufacturer: Festo
Type: DSM-16-270-P-A-B
Part Number: 547574
Series: ED02
Size: 16
Swivel Angle: 270°
Cushioning: Elastic cushioning rings/plates at both ends
Position Sensing: For proximity sensor
Shaft Type: Hollow flanged shaft with feather key slot
Maximum Operating Pressure: 10 bar / 145 psi

Product Label Info

Model Code / Product Markings: DSM-16-270-P-A-B 547574

Application

Ideal for swiveling, rotating, and aligning parts in automated systems.

Country of Origin

This product is manufactured in Germany.

Method of Application

Prepared for proximity sensor mounting for position feedback.

Safety Instructions

Ensure proper installation and integration for optimal performance.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Festo

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Festo
• Explore similar products in Pneumatics

Frequently Asked Questions

What is the Festo DSM-16-270-P-A-B Semi-Rotary Drive used for?

This part is typically used in automated systems, such as assembly lines and robotics. It handles precise rotary motion and is known for its reliability.

What are the key advantages of the Festo DSM-16-270-P-A-B Semi-Rotary Drive?

It offers precise rotary motion, compact design, and robust performance.

Is DSM-16-270-P-A-B compatible with my system?

If you're using Festo control systems, especially the ED02 series, then this model will likely be compatible. Contact us to verify.

Alternatives to DSM-16-270-P-A-B

If you're looking for a similar part, consider other Festo models with semi-rotary drive functionality.

Can I sell my surplus stock to PLC2DAY?

Yes, absolutely. Contact us for more information on surplus stock recovery.

Need Help?

Call us at +31(0)165 20 11 80 or get in touch online.
