Festo DSBC Series ISO 15552 Standard Cylinder

Description

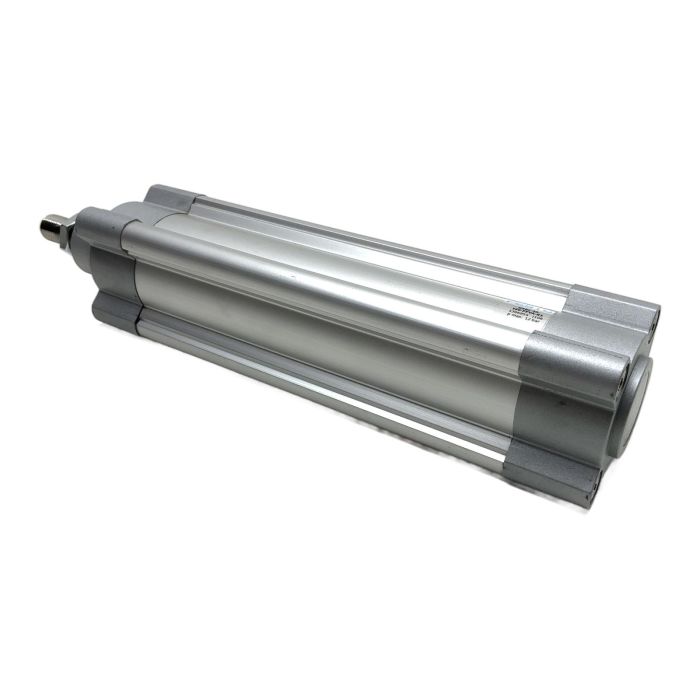

The Festo DSBC-50-160-PPVA-N3 is a high-quality, double-acting pneumatic cylinder designed for precision and durability. Conforming to the ISO 15552 standard, it ensures interchangeability and reliable performance in a vast array of automation tasks. This model features adjustable pneumatic cushioning on both ends, allowing for fine-tuning of end-position deceleration to protect the cylinder and machinery from impact.

Specifications

• Manufacturer: Festo
• Part Number: 1366954
• Model: DSBC-50-160-PPVA-N3
• Piston Bore: 50 mm
• Stroke Length: 160 mm
• Action: Double-acting
• Cushioning: PPVA - Pneumatic cushioning, adjustable at both ends
• Maximum Operating Pressure: 12 bar
• Piston Rod Thread: Male Thread N3

Application

Ideal for use in factory automation, material handling, processing, and packaging machinery where reliable linear motion is required. The adjustable cushioning makes it suitable for applications with varying loads and speeds.

Country of Origin

Manufactured by Festo in Germany.

CO2 Impact

Choosing this pre-owned cylinder over a new one prevents the emission of approximately 24.0 kg of CO2, contributing to a more sustainable operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the significance of the 'PPVA' designation in the model number?

The 'PPVA' indicates that the cylinder is equipped with Pneumatic Cushioning (P) that is adjustable (V) at both ends (A). This feature allows you to control the speed at which the piston approaches the end caps, reducing noise and mechanical shock.

Is this DSBC cylinder compatible with sensors for position detection?

Yes, the profile barrel of the DSBC series has T-slots designed for mounting proximity sensors. This allows for non-contact sensing of the piston's position anywhere along the stroke.

Can I use this cylinder in a low-pressure application, for example, below 2 bar?

Yes, while the maximum pressure is 12 bar, the DSBC series is designed to operate reliably at lower pressures. However, for consistent performance at very low pressures, always consult the official Festo datasheet to verify the minimum operating pressure and force characteristics for your specific load.
