standards-based cylinder: Stroke [mm] 150, Piston diameter 50 mm, Piston rod thread M16x1,5, Dampening PPV: Pneumatic dampening both sides adjustable, installation position arbitrary, Complies to standard ISO 15552, Piston rod end Male thread, Construction set up Piston, piston rod, profile tube, Position detection For proximity switch, Variants One-sided piston rod, Operating pressure [bar] 0.4 to 12, Principle of operation double acting, Operating medium Compressed air to ISO 8573-1:2010 [7:4:4], Information about operating and control medium Oiled operation possible (required in further operations), Corrosion resistant class KBK 2 - moderate corrosion stress, ambient temperature [ﾰC] -20 to 80, Impact energy at the end positions [J] 1,0, Dampening length [mm] 22, Theoretical force at 6 bar, Return flow [N] 990, Theoretical force at 6 bar, flow [N] 1.178, Moving mass at 0 mm stroke [g] 365, Weight supplement per 10 mm stroke [g] 56, Base weight at 0 mm stroke [g] 1.190, Supplement moved mass per 10 mm stroke [g] 25, Fastening type With female thread, With Accessories, Selectively:, Pneumatic connection G1/4, Material information RoHs compliant, Cover material Alu-Druckguss, beschichtet, Werkstoff Kolbendichtung TPE-U(PU), Piston material Aluminium wrought alloy, Piston rod material High-alloyed steel, Werkstoff Kolbenstangen-Dichtabstreifer TPE-U(PU), Werkstoff Pufferdichtung TPE-U(PU), Werkstoff Pufferkolben POM, Cylinder tube material Aluminium-Knetlegierung, gleiteloxiert, Nut material Zinc plated steel, Bearing material POM, Flush screw material Zinc plated steel

• Standards-based cylinder
• Stroke [mm]: 150
• Piston diameter: 50 mm
• Piston rod thread: M16x1,5
• Dampening PPV: Pneumatic dampening both sides adjustable
• Installation position: arbitrary
• Complies to standard ISO 15552
• Piston rod end: Male thread
• Construction set up: Piston, piston rod, profile tube
• Position detection: For proximity switch
• Variants: One-sided piston rod
• Operating pressure [bar]: 0.4 to 12
• Principle of operation: double acting
• Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
• Information about operating and control medium: Oiled operation possible (required in further operations)
• Corrosion resistant class: KBK 2 - moderate corrosion stress
• Ambient temperature [°C]: -20 to 80
• Impact energy at the end positions [J]: 1.0
• Dampening length [mm]: 22
• Theoretical force at 6 bar, Return flow [N]: 990
• Theoretical force at 6 bar, flow [N]: 1.178
• Moving mass at 0 mm stroke [g]: 365
• Weight supplement per 10 mm stroke [g]: 56
• Base weight at 0 mm stroke [g]: 1,190
• Supplement moved mass per 10 mm stroke [g]: 25
• Fastening type: With female thread
• With Accessories, Selectively:
• Pneumatic connection: G1/4
• Material information: RoHs compliant
• Cover material: Alu-Druckguss, beschichtet
• Werkstoff Kolbendichtung: TPE-U(PU)
• Piston material: Aluminium wrought alloy
• Piston rod material: High-alloyed steel
• Werkstoff Kolbenstangen-Dichtabstreifer: TPE-U(PU)
• Werkstoff Pufferdichtung: TPE-U(PU)
• Werkstoff Pufferkolben: POM
• Cylinder tube material: Aluminium-Knetlegierung, gleiteloxiert
• Nut material: Zinc plated steel
• Bearing material: POM
• Flush screw material: Zinc plated steel

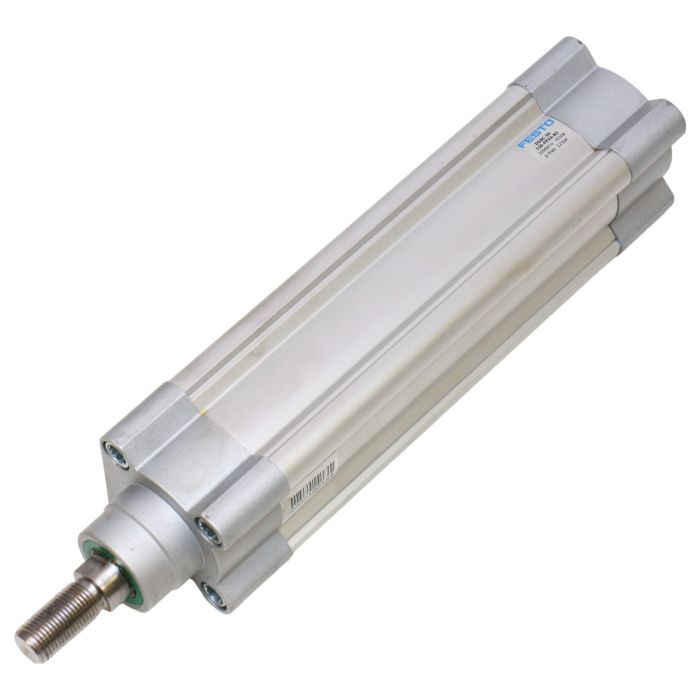

DSBC-50-150-PPVA-N3 (2098974) Festo

The DSBC-50-150-PPVA-N3 (2098974) Festo is a high-quality industrial item that can be purchased at PLC2Day. This item is widely used in various industrial applications, providing efficient and reliable performance. With its robust design and advanced features, it ensures smooth operations in demanding environments. Boost your productivity and streamline your processes with the DSBC-50-150-PPVA-N3 (2098974) Festo.
