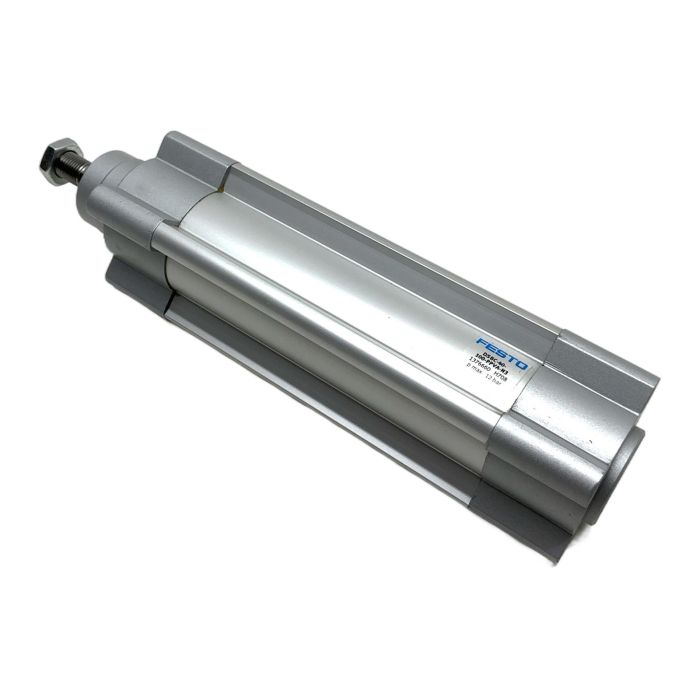

Festo ISO 15552 Standard Pneumatic Cylinder

Description

This is the Festo DSBC-40-100-PPVA-N3, a robust and reliable double-acting profile cylinder designed for a multitude of automation tasks. It complies with the ISO 15552 standard, making it dimensionally interchangeable with other cylinders of the same standard. Its key feature is the self-adjusting pneumatic end-position cushioning, which automatically adapts to changes in load and speed, significantly reducing setup time and optimizing machine cycles. This cylinder is an excellent choice for applications requiring precision, durability, and efficiency. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Festo
• Type: Standard Cylinder
• Model: DSBC-40-100-PPVA-N3
• Part Number: 1376660
• Piston Bore: 40 mm
• Stroke Length: 100 mm
• Operating Pressure: 0.4 to 12 bar
• Mode of Operation: Double-acting
• Cushioning: Self-adjusting pneumatic cushioning at both ends (PPVA)
• Piston Rod Thread: Male Thread
• Standards: Conforms to ISO 15552

Label Info

• Brand: FESTO
• Model: DSBC-40-100-PPVA-N3
• Part No: 1376660 H708
• p max: 12 bar

Application

Ideal for general automation, material handling, clamping, sorting, and positioning tasks in industries such as packaging, automotive, and assembly lines where reliable linear motion is required.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you help avoid the production of a new one, saving approximately 11.5 kg of CO2. This is comparable to the emissions from driving a car for 57 kilometers.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

PPVA cushioning automatically adapts the cylinder's deceleration at the end of the stroke to match the current load and speed. This eliminates the need for manual adjustments, saves commissioning time, reduces noise, and minimizes vibrations, leading to a longer service life for both the cylinder and the machine.

Yes, the DSBC series is designed for position sensing. It features integrated T-slots on the profile barrel for mounting proximity sensors, such as the Festo SMT-8M or SME-8M series, to detect the piston's position without direct contact.

The recommended operating medium is compressed air in accordance with ISO 8573-1:2010 [7:4:4]. This means the air should be filtered to 40 micrometers, have a pressure dew point at least 10 deg C below ambient temperature, and have a maximum oil concentration of 5 mg/m3. Using lubricated or unlubricated air is possible.
