Festo DPA-100-16 Pneumatic Pressure Booster

Description

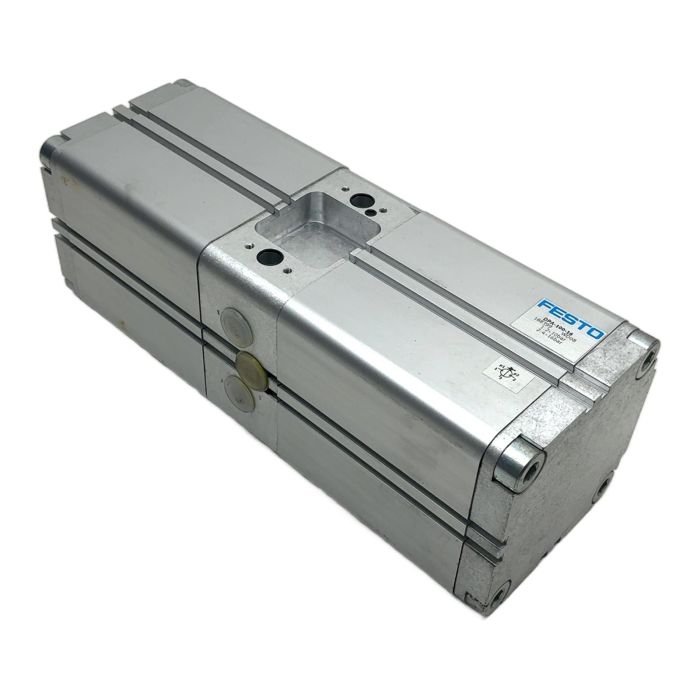

The Festo DPA-100-16 is a high-performance pneumatic pressure booster designed to double the input pressure for specific applications. With a 100 mm piston diameter and a 16 mm stroke, it provides a reliable method for pressure intensification without the need for an external power supply. This unit is ideal for clamping, testing, or pressing operations that require higher forces. This offer includes the main DPA-100-16 unit along with a detached valve sub-base, pressure regulator, and manifold block as pictured. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Festo
• Model: DPA-100-16
• Part Number: 188399
• Piston Diameter: 100 mm
• Stroke: 16 mm
• Pressure Ratio: 1:2
• Operating Pressure (Inlet): 2 to 8 bar
• Maximum Outlet Pressure: 16 bar
• Operating Medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4]

Label Info

• Type: DPA-100-16
• Part No: 188399
• Date Code: WD08
• p1: 2-10 bar
• p2: 4-16 bar

Application

This pressure booster is commonly used in automation systems, manufacturing lines, and workshops for tasks such as powering high-force cylinders, leak testing components, and providing sufficient pressure for press-fitting operations.

Country of Origin

Made in Germany.

CO2 Impact

By reusing this industrial part, you contribute to a significant reduction in CO2 emissions. This single unit's refurbishment saves approximately 36.0 kg of CO2, which is a substantial environmental benefit compared to manufacturing a new one.

Availability

This item is in stock and ready for immediate dispatch. It is an obsolete component, making it a valuable spare for existing installations.

FAQ

The DPA-100-16 has a theoretical pressure multiplication ratio of 1:2. This means it can approximately double the inlet pressure at the outlet, up to a maximum of 16 bar.

Yes, according to the Festo datasheet, the DPA series can be operated with or without lubricated air. If lubrication is used once, it must be used continuously.

This offer includes the DPA-100-16 pressure booster along with a detached valve sub-base (likely Festo MPA1FBEMM8-C), a pressure regulator, and a manifold block, as shown in the images. Please verify all components upon receipt.
