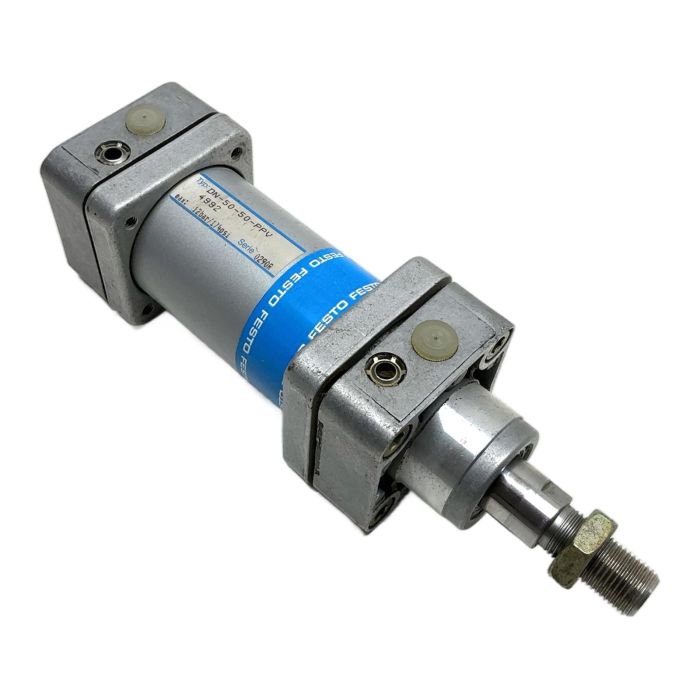

Festo DN-50-50-PPV Pneumatic Cylinder

Description

The Festo DN-50-50-PPV is a robust standard cylinder designed for a wide range of pneumatic applications. It features a 50mm piston diameter and a 50mm stroke. The adjustable pneumatic cushioning at both ends (PPV) ensures smooth, controlled deceleration, reducing wear and operational noise. This cylinder is built to last and provides reliable linear motion in automated systems.

Specifications

• Manufacturer: Festo
• Type: Pneumatic Standard Cylinder
• Series: DN
• Piston Bore: 50 mm
• Stroke: 50 mm
• Cushioning: PPV - Adjustable pneumatic cushioning at both ends
• Maximum Operating Pressure: 12 bar / 174 psi

Label Info

• Typ: DN-50-50-PPV
• Part Number: 4992
• max: 12bar/174psi
• Serie: 0290R

Application

This cylinder is ideal for tasks such as clamping, positioning, and material handling in various industrial environments. Its standard design makes it a versatile component for machine building and factory automation.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are helping to avoid the production of a new one, which saves approximately 15.0 kg of CO2 emissions. This is comparable to the emissions from driving a standard car for 75 kilometers.

Availability

This is an obsolete item, but it is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does 'PPV' mean in the model number DN-50-50-PPV?

'PPV' stands for Pneumatic Cushioning, adjustable at both ends. This feature allows for a controlled deceleration at the end of the stroke, reducing impact and noise, which is crucial for high-speed or high-mass applications.

The standard DN series cylinder does not have a magnetic piston for sensor detection. If position sensing is required, an external sensor mounting kit or a different cylinder series with an integrated magnet (e.g., DNC or DSBC with an '-A' suffix) would be necessary.

For a Festo cylinder with a 50mm bore, the standard male piston rod thread is M16x1.5. Always verify with the official datasheet for your specific application to ensure compatibility with attachments.
