Festo DN-50-50-PPV Pneumatic Cylinder

Description

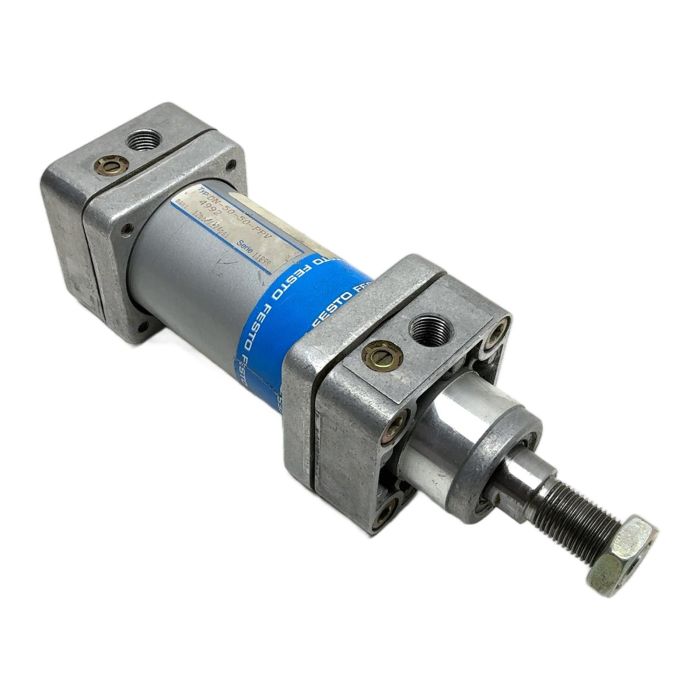

This is a Festo DN-50-50-PPV, a double-acting standard cylinder. It is engineered for reliability in various automation tasks. With a 50 mm bore and a 50 mm stroke, it delivers consistent performance. The adjustable pneumatic cushioning (PPV) at both ends ensures controlled movement and reduces impact, extending the life of the cylinder and associated machinery. Although this model is part of an obsolete series, it remains a valuable component for repairs and maintenance of existing systems.

Specifications

• Manufacturer: Festo
• Type: DN-50-50-PPV
• Part Number: 4992
• Piston Bore: 50 mm
• Stroke: 50 mm
• Action: Double-acting
• Cushioning: Pneumatic, adjustable at both ends (PPV)
• Maximum Operating Pressure: 12 bar (174 psi)

Label Info

• Typ: DN-50-50-PPV
• Part Nr: 4992
• Max: 12bar / 174psi
• Serie: 1199R

Application

This cylinder is suitable for a wide range of industrial applications including clamping, positioning, lifting, and pushing tasks in manufacturing, packaging, and material handling systems.

Country of Origin

Manufactured by Festo in Germany.

CO2 Impact

Opting for this pre-owned cylinder avoids the production of a new one, saving an estimated 15.0 kg of CO2. This is comparable to the emissions from driving a car for 75 kilometers.

Availability

This is an obsolete item, available as a refurbished part. Limited stock available. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'PPV' designation indicates that the cylinder is equipped with adjustable pneumatic cushioning at both ends. This feature allows you to control the speed of the piston at the end of its stroke, reducing impact, noise, and vibration.

While the Festo DSBC series is the modern functional equivalent, it may not be a direct drop-in replacement. Mounting dimensions, overall length, and piston rod thread size should be carefully compared between the DN-50-50-PPV datasheet and the proposed DSBC equivalent to ensure mechanical compatibility without modifications.

The maximum operating pressure is 12 bar or 174 psi, as indicated on the label. It is designed to operate with filtered, lubricated, or non-lubricated compressed air according to ISO 8573-1:2010 [7:4:4]. Using properly prepared air is crucial for a long service life.
