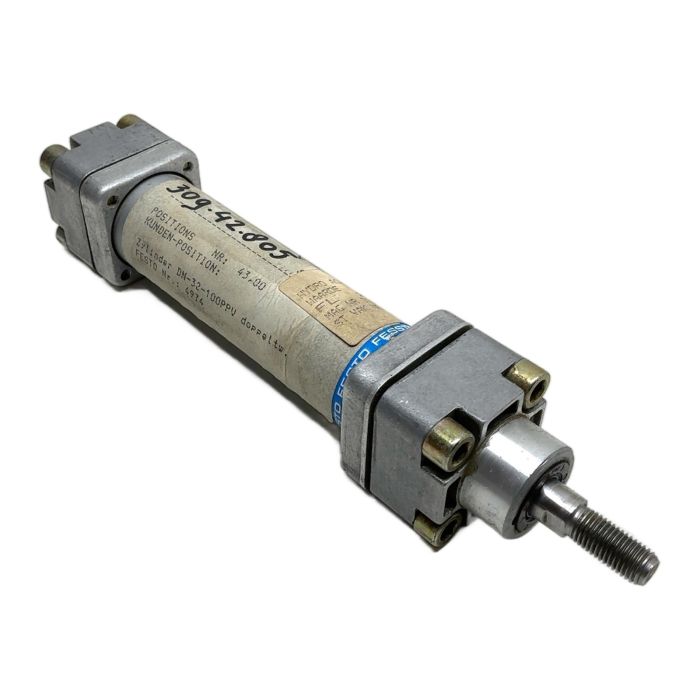

Festo DN-32-100-PPV Pneumatic Cylinder

Description

This is a used but fully functional pneumatic cylinder, model DN-32-100-PPV, from the renowned manufacturer Festo. As part of the DNC standard cylinder series based on ISO 6431, it offers robust and reliable performance for a wide array of industrial automation tasks. This double-acting cylinder features a 32mm bore and a 100mm stroke, with adjustable pneumatic cushioning at both ends (PPV) for precise control and reduced mechanical shock.

Specifications

• Manufacturer: Festo
• Type: Pneumatic Standard Cylinder
• Model: DN-32-100-PPV
• Part Number: 4974
• Piston Diameter (Bore): 32 mm
• Stroke Length: 100 mm
• Action: Double-acting
• Cushioning: PPV - Pneumatic cushioning, adjustable at both ends
• Maximum Operating Pressure: 12 bar / 174 psi
• Standards: Conforms to ISO 6431

Label Info

• Typ: DN-32-100-PPV
• Festo Nr.: 4974
• max: 12bar/174psi
• Serie: 1189R

Application

Ideal for applications requiring linear motion, such as clamping, positioning, pushing, or lifting in manufacturing lines, packaging machinery, and material handling systems.

Country of Origin

Germany

CO2 Impact

Opting for this pre-owned cylinder over a new one prevents the emission of approximately 6.5 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the 'PPV' designation in the model number signify?

Answer: 'PPV' in Festo's nomenclature stands for Pneumatic cushioning that is adjustable at both ends of the cylinder. This feature allows you to control the deceleration of the piston as it reaches the end of its stroke, reducing impact and noise, and extending the life of the cylinder and machinery.

Question?
Is this cylinder compatible with modern position sensors?

Answer: Yes, this cylinder design incorporates a magnetic piston and has T-slots on the profile barrel, making it fully compatible with modern proximity sensors (like Festo's SME/SMI series) for position sensing without mechanical contact.

Question?
What type of maintenance is recommended for this cylinder?

Answer: These cylinders are designed for long life with minimal maintenance. The primary requirement is to ensure a supply of clean, dry, and optionally lubricated compressed air, according to ISO 8573-1:2010 [7:4:4]. Periodically check for air leaks and ensure the cushioning adjustment screws remain set as required.
