Festo CPV Series Pneumatic Valve Terminal

Description

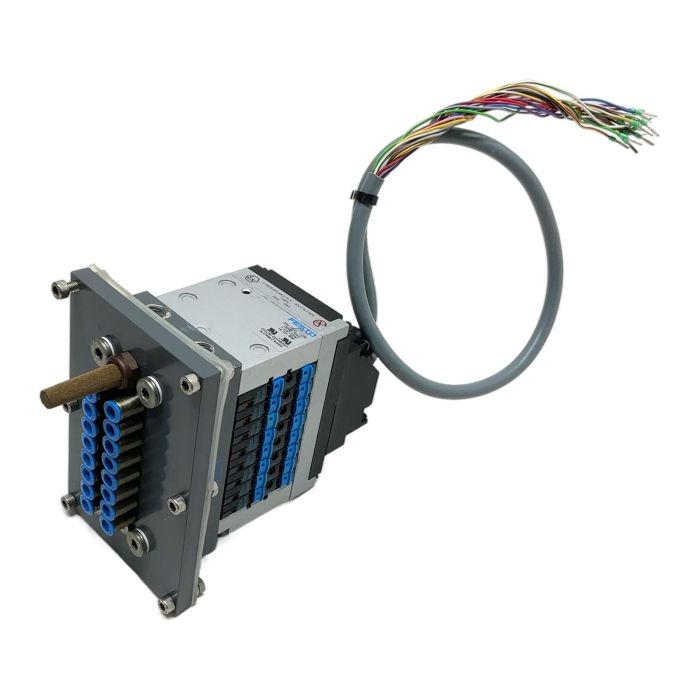

This is a Festo CPV-10-VI-P8-M7, an 8-station pneumatic valve terminal designed for high-performance automation tasks. Part of the renowned Compact Performance Valve (CPV) series, this unit offers a high packing density and flow rate in a small footprint. It is equipped with a CPV10-GE-MP-8 multi-pin electrical interface (Part No. 18255) for straightforward, centralized electrical control of all 8 valve positions. This assembly is ideal for applications requiring reliable and precise control over multiple pneumatic lines.

Specifications

• Manufacturer: Festo
• Series: CPV
• Type: Pneumatic Valve Terminal Assembly
• Model: CPV-10-VI-P8-M7
• Electrical Interface: CPV10-GE-MP-8 (Part No. 18255)
• Number of Valve Stations: 8
• Operating Pressure: -0.9 to 10 bar
• Electrical Connection: Multi-pin cable
• Ingress Protection: IP65

Label Info

• Main Assembly: CPV-10-VI-P8-M7, SA-205597
• Electrical Interface: CPV10-GE-MP-8, 18255 RN07
• Manifold Base: CPV-10-VI, 18200 RN02

Application

Perfectly suited for machine building, packaging lines, material handling, and general automation systems where space is limited but a high number of pneumatic functions need to be controlled efficiently.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this pre-owned component saves an estimated 48.0 kg of CO2 emissions compared to purchasing a new one, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This terminal is designed for Festo's CPV10 series valves, which have a 10mm width. You can configure it with various valve functions like 5/2-way single solenoid, 5/2-way double solenoid, or 5/3-way valves, depending on your application needs.

The pinout for the connector is detailed in the Festo documentation for part number 18255. Each pin corresponds to a specific solenoid coil or a common power/ground connection. It is crucial to consult the official datasheet to ensure correct wiring and prevent damage to the coils or your control system.

The CPV10 system is modular, but this specific assembly with the CPV10-GE-MP-8 electrical interface (18255) is configured for a maximum of 8 valve stations. Expanding it would require replacing the electrical interface and the manifold rail with a larger version.
