5/2 double solenoid Valve: Feature Value, Valve function 5/2 double solenoid, Type of actuation Electric, Construction width 18 mm, Standard nominal flow rate 850 l/min, pneumatic working port QS-8, Operating voltage 24V DC, Operating pressure 0.2 MPa ... 1 MPa, Operating pressure 2 bar ... 10 bar, Design Piston gate valve, Approval c UL us - Recognized (OL), Maritime classification See certificate, Certificate issuing authority DNV-TAA000032X, Degree of protection IP65, With plug socket, To IEC 60529, Nominal size 8 mm, Exhaust-air function With flow control option, Sealing principle Soft, Mounting position optional, Manual override Detenting via accessory, Non-detenting, Type of piloting Pilot actuated, Pilot air supply Internal, Flow direction Non-reversible, Symbol 00991013, Valve position code Inscription label holder, lap Positive overlap, Switching time reversal 13 ms, Duty cycle 100%, Max. positive test pulse with 0 signal 3300 µs, Max. negative test pulse with 1 signal 3100 µs, Characteristic coil data 24 V DC: 1.5 W, Permissible voltage fluctuations -15%/+10%, Operating medium Compressed air to ISO 8573-1:2010 [7:4:4], Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will, always be required).

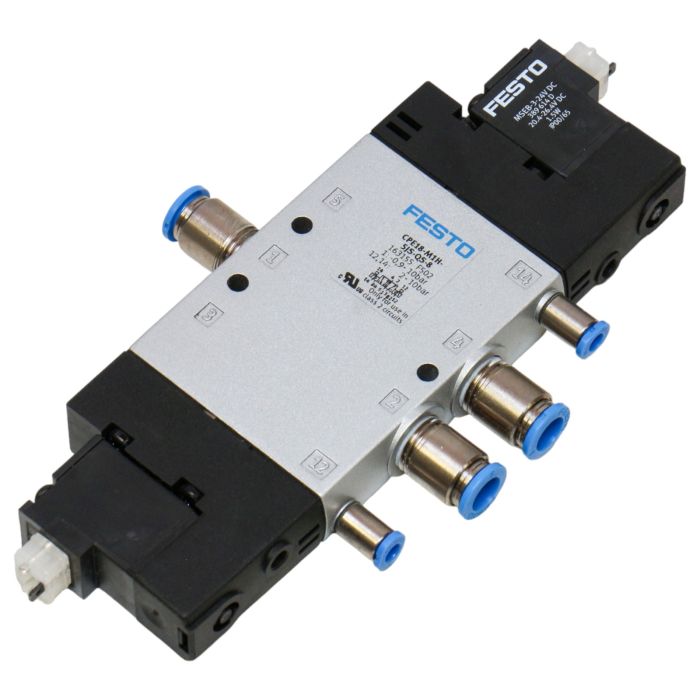

• Feature Value: CPE18-M1H-5J5-Q5-8 (163155) + MSEB-3-24V-DC Festo
• Valve function: 5/2 double solenoid
• Type of actuation: Electric
• Construction width: 18 mm
• Standard nominal flow rate: 850 l/min
• Pneumatic working port: QS-8
• Operating voltage: 24V DC
• Operating pressure: 0.2 MPa ... 1 MPa
• Operating pressure: 2 bar ... 10 bar
• Design: Piston gate valve
• Approval: c UL us - Recognized (OL)
• Maritime classification: See certificate
• Certificate issuing authority: DNV-TAA000032X
• Degree of protection: IP65
• With plug socket: To IEC 60529
• Nominal size: 8 mm
• Exhaust-air function: With flow control option
• Sealing principle: Soft
• Mounting position: Optional
• Manual override: Detenting via accessory, Non-detenting
• Type of piloting: Pilot actuated
• Pilot air supply: Internal
• Flow direction: Non-reversible
• Symbol: 00991013
• Valve position code: Inscription label holder, lap Positive overlap
• Switching time reversal: 13 ms
• Duty cycle: 100%
• Max. positive test pulse with 0 signal: 3300 µs
• Max. negative test pulse with 1 signal: 3100 µs
• Characteristic coil data 24 V DC: 1.5 W
• Permissible voltage fluctuations: -15%/+10%
• Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required)

Festo MSEB-3-24V-DC is a high-quality electrical component used in industrial automation applications. It can be bought at PLC2Day. This item is suitable for various industrial applications requiring reliable and durable electrical components.
