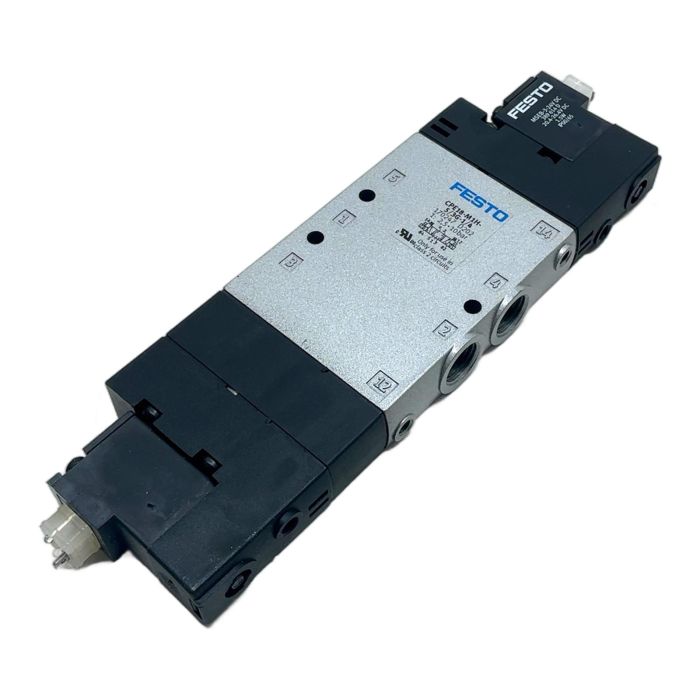

Festo CPE18-M1H-5/3G-1/4 5/3-Way Pneumatic Solenoid Valve

Description

The Festo CPE18-M1H-5/3G-1/4 is a robust and reliable double solenoid valve designed for precise control in pneumatic systems. As part of the CPE series, it is known for its high flow rates and long service life. This 5/3-way valve with a closed mid-position is ideal for applications requiring actuators to be held in position or for safe stopping functions.

Specifications

• Manufacturer: Festo
• Part Number: 170247
• Model: CPE18-M1H-5/3G-1/4
• Valve Function: 5/3-way, mid-position closed (G)
• Actuation: Electrical, double solenoid
• Operating Pressure: 2.5 to 10 bar
• Pneumatic Connection: G1/4 inch
• Nominal Flow Rate: 1600 l/min
• Solenoid Coils: 2x MSEB-3-24V DC (24V DC, 1.5W)

Label Info

• CPE18-M1H-5/3G-1/4
• 170247 D202
• Pressure (1): 2,5 - 10 bar

Application

This valve is widely used in factory automation, material handling, packaging machinery, and process control where reliable pneumatic actuation is critical. Its 5/3G function is particularly useful for positioning and holding cylinders mid-stroke.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component helps avoid approximately 16.0 kg of CO2 emissions compared to manufacturing a new one, supporting sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A 5/3G valve is a 5-port, 3-position valve. The 'G' designation specifies that in the center (unactuated) position, all ports are blocked (closed). This is used to lock a pneumatic cylinder in its current position when both solenoids are de-energized.

Yes, the solenoid coils on Festo CPE series valves are modular and can be replaced individually. Ensure you use the correct replacement part to maintain performance and safety ratings.

For optimal performance and longevity, Festo recommends compressed air quality according to ISO 8573-1:2010 [7:4:4]. This means filtered air (40 micrometer), with options for lubricated or unlubricated operation.
