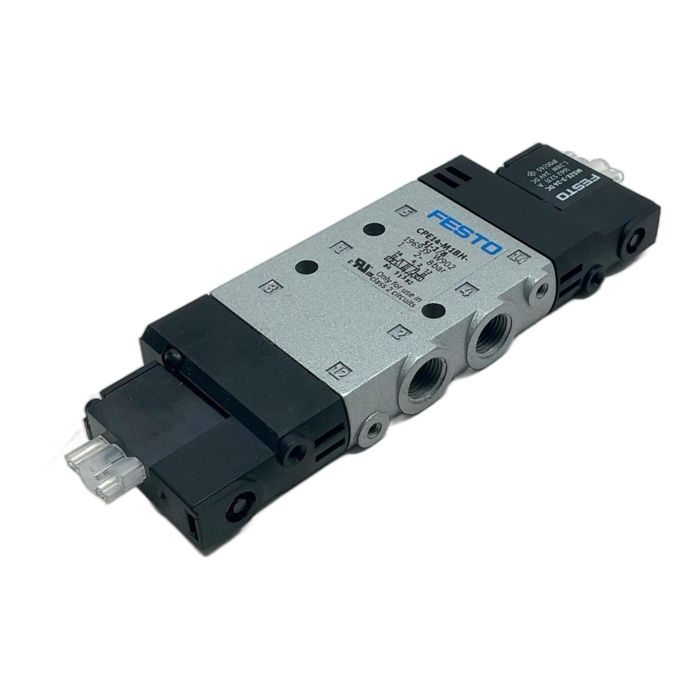

Festo CPE14-M1BH-5J-1/8 Pneumatic Solenoid Valve

Description

The Festo CPE14-M1BH-5J-1/8 is a high-performance single solenoid valve designed for reliability and precision in pneumatic systems. As part of the renowned CPE series, this valve offers a compact design without compromising on flow rate, making it ideal for a wide range of industrial automation applications. It operates on 24V DC and features a 5/2-way function with a mechanical spring return for safe and dependable operation.

Specifications

• Manufacturer: Festo
• Type: CPE14-M1BH-5J-1/8
• Part Number: 196939
• Valve Function: 5/2-way, single solenoid with spring return
• Operating Voltage: 24V DC
• Power Consumption: 1.25W
• Pneumatic Connection: G1/8
• Operating Pressure: 3 to 10 bar (44 to 145 psi)
• Standard Nominal Flow Rate: 800 l/min
• Protection Class: IP65 with plug socket

Label Info

• FESTO CPE14-M1BH-5J-1/8
• Mat.-Nr.: 196939
• Serie: W902
• Solenoid Coil: MSZE-3-24 DC

Application

This solenoid valve is suitable for controlling pneumatic actuators like cylinders, grippers, and rotary drives in sectors such as packaging, assembly, and material handling.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this pre-owned item, you are helping to avoid 7.6 kg of CO2 emissions associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The '5J' designation in the Festo part number indicates that this is a 5/2-way valve (5 ports, 2 positions) with a single solenoid and a mechanical spring return mechanism.

Yes, the official datasheet specifies that this valve can operate with a vacuum on port 1 down to -0.9 bar, making it suitable for certain vacuum gripping or holding applications.

The MSZE-3-24 DC solenoid coil requires a plug socket with a contact pattern according to Festo form C, type MSSD-C, which typically needs to be ordered separately.
