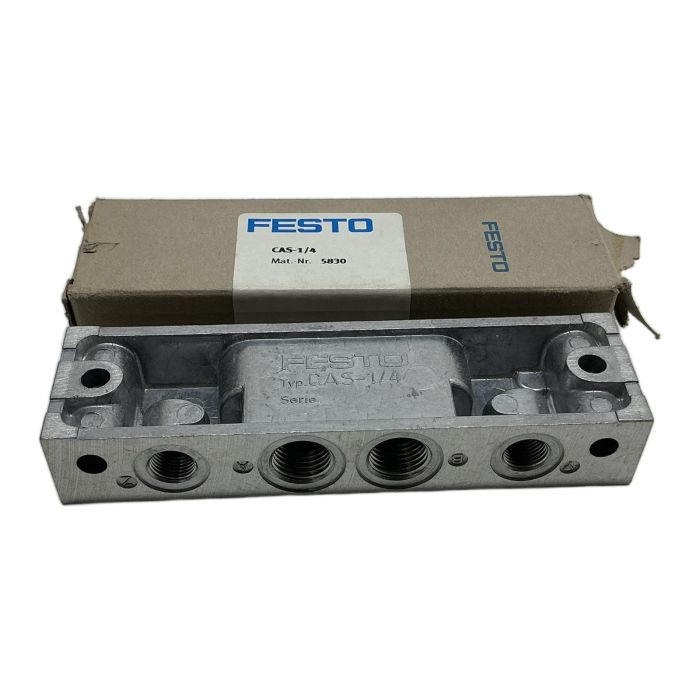

Festo CAS-1/4 4-Station Pneumatic Manifold Block

Description

The Festo CAS-1/4, part number 5830, is a high-quality 4-station manifold block designed for mounting pneumatic valves. Its compact design and robust anodized aluminum construction make it an ideal solution for organizing complex pneumatic circuits while saving space. All ports feature standard G1/4 threading for easy integration.

Specifications

• Manufacturer: Festo
• Type: CAS-1/4
• Part Number: 5830
• Number of Valve Stations: 4
• Pneumatic Connection (all ports): G1/4
• Operating Pressure: -0.95 to 10 bar
• Material: Anodized Wrought Aluminium Alloy
• Ambient Temperature: -10 to 80 deg C

Label Info

• Brand: FESTO
• Type: CAS-1/4
• Material Number: 5830

Application

This manifold block is suitable for a wide range of industrial automation applications, including packaging machinery, assembly lines, and material handling systems, where multiple pneumatic actuators need to be controlled from a central point.

Country of Origin

Germany

CO2 Impact

By purchasing this reused component, you are helping to avoid approximately 3.2 kg of CO2 emissions. This saving is comparable to the emissions from driving a car for 16 kilometers.

Availability

This is an obsolete item, but it is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

The CAS-1/4 manifold block is specifically designed for use with the Festo J-series pneumatic solenoid valves.

This block can be mounted directly onto a machine frame or panel using the through-holes provided at each end.

Yes, unused stations can be sealed off using appropriate blanking plates, such as the Festo part number J-BP (part no. 2785).
