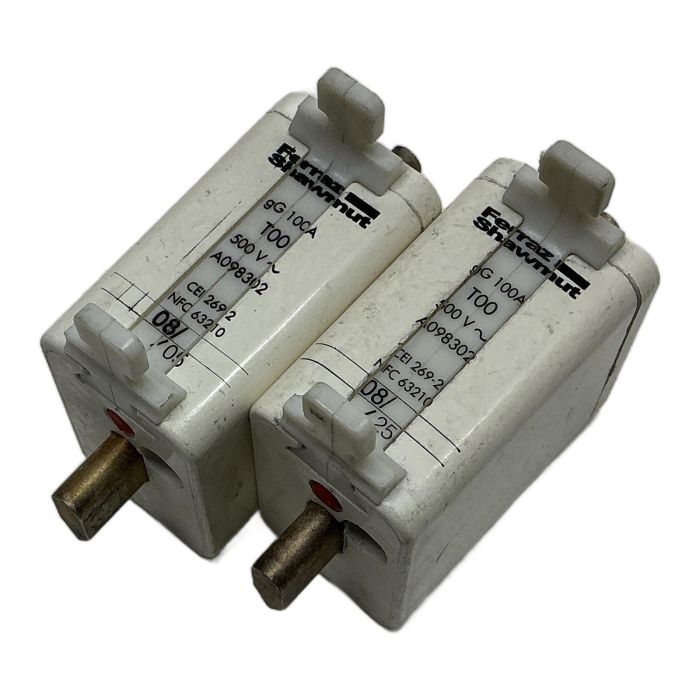

Ferraz Shawmut NH Fuse 100A 500V T00

Description

This is a high-quality NH fuse from Ferraz Shawmut, now part of Mersen. Model T00 with part number A098302, it is designed for reliable overcurrent protection in industrial applications. It features a gG characteristic, making it suitable for general-purpose cable and line protection. The fuse is rated for 100 Amperes and 500 Volts AC and includes a visual indicator to easily identify a blown fuse.

Specifications

• Manufacturer: Ferraz Shawmut (Mersen)
• Type: NH Fuse Link
• Size: NH00 (T00)
• Part Number: A098302
• Current Rating: 100 A
• Voltage Rating: 500 V AC
• Fuse Characteristic: gG
• Indicator: Top visual indicator
• Standards: IEC/CEI 60269-2, NFC 63210

Label Info

• gG 100A
• T00
• 500 V~
• A098302

Application

This NH fuse is ideal for use in industrial distribution boards, switchgear, fuse-disconnectors, and for protecting transformers and other critical electrical infrastructure against short-circuits and overloads.

Country of Origin

This product is manufactured in France.

CO2 Impact

Choosing this reused Ferraz Shawmut fuse prevents the emission of approximately 6.0 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the CO2 absorbed by a mature tree over a year.

Availability

This item is a surplus part and is available for immediate dispatch. While the Ferraz Shawmut brand is obsolete, this product is functionally identical to its modern Mersen counterparts. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'gG' designation indicates a general-purpose fuse link for full-range breaking capacity. It is designed to protect cables and lines against both overload and short-circuit currents, making it widely applicable in industrial settings. This contrasts with 'aM' fuses, which are designed specifically for motor protection (short-circuit only).

Standard NH fuses of this type typically have a very high breaking capacity to safely interrupt large fault currents. For a 500V AC rating, the breaking capacity is usually 120 kA, which ensures safety even in systems with high prospective short-circuit currents.

Yes, it is generally safe to use a fuse with a higher voltage rating than the system voltage, provided the physical size (NH00) and amperage (100A) are correct for the application. However, you must never replace a fuse with one that has a lower voltage rating, as it may not be able to safely extinguish the arc during a fault.
