Fenner SPB 250-2 Taper Lock V-Belt Pulley

Description

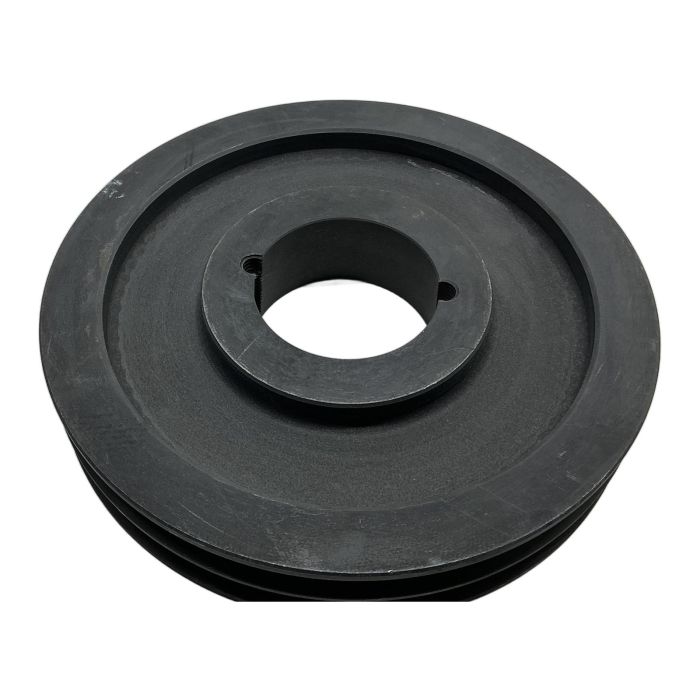

This is a V-belt pulley (sheave) manufactured by Fenner, designed for mechanical power transmission systems. This model, SPB 250-2, features two grooves for SPB profile V-belts and has a pitch circle diameter of 250 mm. It is designed to be used with a 2517 Taper Lock bush, allowing for easy and secure installation on a variety of shaft sizes. The pulley is made from high-grade cast iron, ensuring excellent strength and wear resistance for long service life.

Specifications

• Manufacturer: Fenner
• Type: Taper Lock V-Belt Pulley
• Model: SPB 250-2
• Belt Profile: SPB
• Pitch Circle Diameter (PCD): 250 mm
• Number of Grooves: 2
• Required Taper Bush: 2517
• Material: Cast Iron

Label Info

• Brand: Fenner
• Part Number: SPB 250-2 2517

Application

This pulley is suitable for a wide range of industrial applications, including conveyor systems, fans, pumps, compressors, and general machinery where reliable power transmission via V-belts is required.

CO2 Impact

Opting for this reused pulley instead of a new one prevents the emission of approximately 13.0 kg of CO2. This saving is comparable to the emissions produced by driving an average car for 65 kilometers, making it an environmentally conscious choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. It is a used component in excellent working condition. A compatible Taper Lock bush is not included but can be sourced separately. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the purpose of the '2517' designation?
The '2517' specifies the size of the Taper Lock bush required to mount this pulley onto a shaft. This standardized system allows for a secure, keyed fit on various shaft diameters by simply changing the bush, not the pulley.

How do I determine the correct shaft size for this pulley?
The shaft size is determined by the bore of the 2517 Taper Lock bush you select. 2517 bushes are available with a wide range of metric and imperial bore sizes. You must choose a bush that matches your specific shaft diameter.

Can I use a different belt profile, like SPA or SPC, with this SPB pulley?
No, it is critical to match the belt profile to the pulley groove profile. This pulley is designed exclusively for SPB profile V-belts. Using an incorrect belt profile will lead to inefficient power transmission, excessive wear, and premature failure of both the belt and the pulley.
