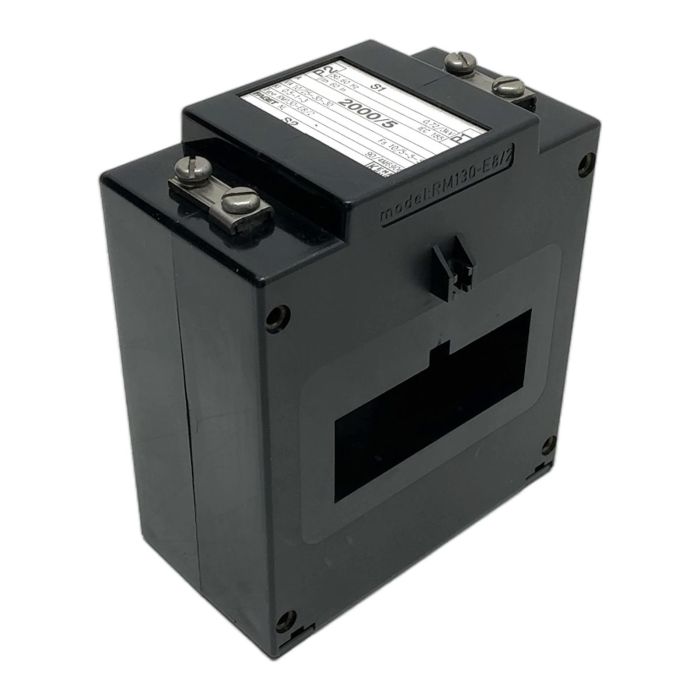

Faget RM130-E8/2 Current Transformer

Description

The Faget RM130-E8/2 is a high-performance busbar-type current transformer designed for measuring high alternating currents in industrial electrical systems. With a transformation ratio of 2000/5 A, it accurately steps down current for measurement by standard meters and protection relays. This transformer is a reliable choice for energy management, load monitoring, and system protection applications.

Specifications

• Manufacturer: Faget
• Type: RM130-E8/2
• Primary Current: 2000 A
• Secondary Current: 5 A
• Frequency: 50-60 Hz
• Insulation Level: 0.72/3 kV
• Accuracy Classes: 0.5, 1, 3
• Burden Ratings: 10, 25, 30 VA
• Standard: IEC 185

Label Info

• Type: RM130-E8/2
• Ratio: 2000/5 A
• Serial Number: 90/4M6906
• Certification: KEMA KEUR

Application

This current transformer is suitable for installation in switchgear, power distribution panels, and large motor control centers. It provides essential input for ammeters, watt-hour meters, power quality monitors, and protective relays.

Country of Origin

Made in the Netherlands.

CO2 Impact

By reusing this component, you are actively contributing to a circular economy and saving approximately 160 kg of CO2 emissions compared to the production of a new one.

Availability

This is an obsolete item, but available from our stock. Limited quantity. Order now from PLC2Day for expert support and fast delivery.

FAQ

The accuracy classes indicate the transformer's precision. Class 0.5 is a high-accuracy class suitable for revenue-grade metering. Class 1 is for general industrial metering, and Class 3 is typically used for protection relay applications where high precision is less critical than reliable operation under fault conditions.

Yes, absolutely. This transformer has a standard 5A secondary output, which is compatible with most industrial digital power meters, ammeters, and protection relays. Ensure the meter's input burden (VA) does not exceed the transformer's rating for the desired accuracy class (e.g., 10 VA for class 0.5).

The model number RM130 likely indicates the window dimensions. For this series, it typically refers to a rectangular window where one dimension is approximately 130mm. It is crucial to measure the exact opening before installation to ensure your busbar or cable fits.
