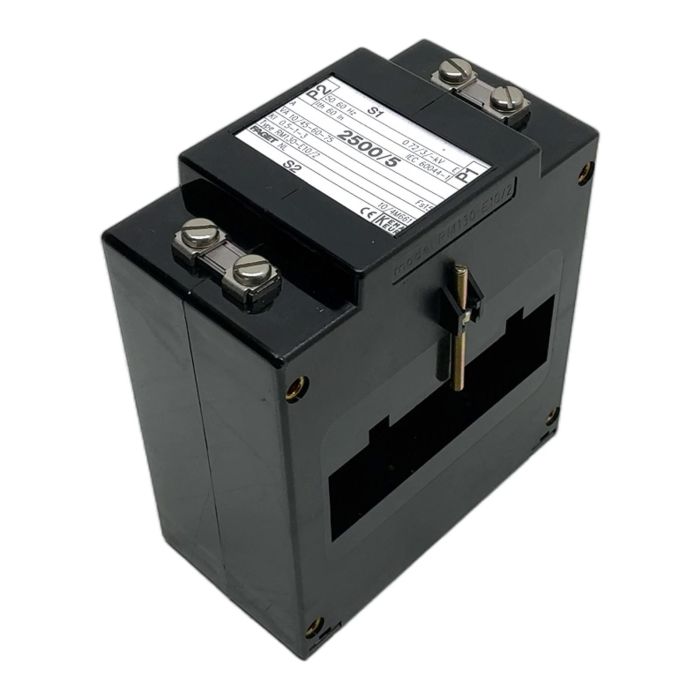

FAGET RM130-E10/2 Current Transformer

Description

The FAGET RM130-E10/2 is a high-performance, window-type current transformer designed for mounting over busbars or primary conductors. It provides a scaled-down secondary current of 5A from a primary current of 2500A, suitable for measurement and protection devices in industrial electrical systems. Its robust construction ensures reliability and long service life in demanding environments.

Specifications

• Manufacturer: FAGET
• Type: RM130-E10/2
• Primary Current: 2500 A
• Secondary Current: 5 A
• Frequency: 50 to 60 Hz
• Max. System Voltage: 0.72 kV
• Burden / Accuracy Class: 10VA/Cl 0.5, 45-60VA/Cl 1, 75VA/Cl 3
• Standard: IEC 60044-1

Label Info

• Ith: 60 In
• Fs: 15
• Serial Code: 10/4M6611

Application

Ideal for use in power distribution panels, switchgear, generator sets, and energy management systems for monitoring high current loads and for protective relaying.

Country of Origin

Manufactured in the Netherlands (NL).

CO2 Impact

Opting for this pre-owned component saves an estimated 80 kg of CO2 compared to a new purchase, supporting sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What are the different accuracy classes (0.5-1-3) and VA ratings listed on this transformer for?

This indicates the transformer has multiple performance levels. It achieves the highest accuracy, Class 0.5, at a lower burden of 10VA, suitable for precise metering. At higher burdens like 45-75VA, the accuracy decreases to Class 1 or 3, which is typically acceptable for protection relay applications.

No, this is a window-type or busbar-type current transformer. It is designed to be mounted directly over a large primary conductor or busbar. It does not have a DIN rail mounting clip.

IEC 60044-1 has been superseded by the IEC 61869 series of standards (specifically IEC 61869-2 for current transformers). While this transformer is fully functional and safe for replacement or existing systems, new installations may require components certified to the latest standard. Always check your local regulations and project requirements.
