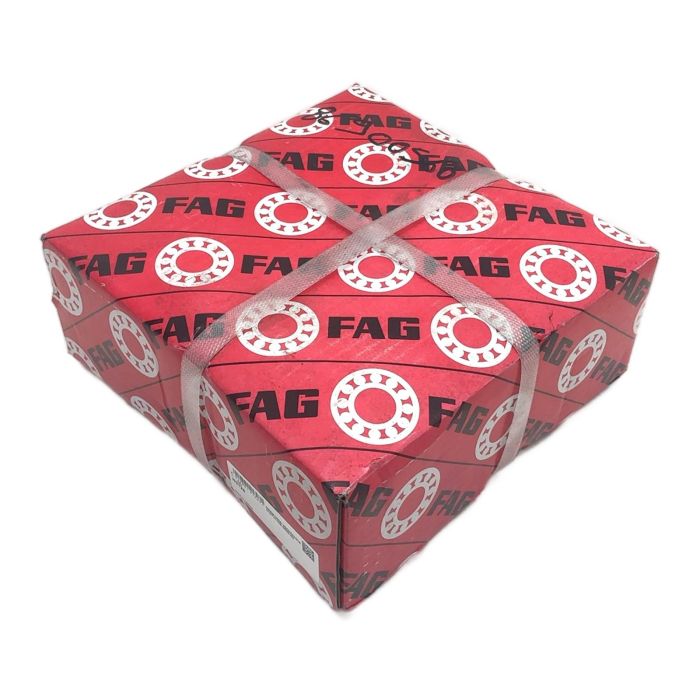

FAG NU1024 Cylindrical Roller Bearing

Description

The FAG NU1024 is a high-performance, single-row cylindrical roller bearing designed for applications that require high radial load carrying capacity and high-speed capability. As part of the Schaeffler Group, FAG bearings are synonymous with quality and precision engineering, ensuring reliable operation in demanding industrial environments.

Specifications

• Manufacturer: FAG
• Type: NU1024
• Category: Cylindrical Roller Bearing
• Design: Single Row, NU Type (non-locating)
• Bore Diameter: 120 mm
• Outer Diameter: 180 mm
• Width: 28 mm
• EAN: 4047643516317

Label Info

• Brand: FAG
• Part Number: NU1024
• EAN: 4047643516317

Application

This bearing is suitable for a wide range of applications, including industrial gearboxes, pumps and compressors, electric motors, and general machinery where axial displacement between the shaft and housing must be accommodated.

Country of Origin

Made in Austria.

CO2 Impact

Opting for this component saves approximately 5.52 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a standard car for 27 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'NU' designation mean for the FAG NU1024 bearing?
The 'NU' designation indicates the flange configuration. An NU series cylindrical roller bearing has two integral flanges on the outer ring and no flanges on the inner ring. This allows the bearing to accommodate axial displacement of the shaft relative to the housing in both directions.

Is this bearing suitable for applications with axial loads?
No, the NU1024 is designed primarily for high radial loads. Due to its flange configuration (no flanges on the inner ring), it cannot support any axial load. For combined radial and axial loads, a different type of bearing, such as an angular contact ball bearing or a tapered roller bearing, would be required.

What kind of lubrication is recommended for the NU1024?
The appropriate lubrication depends on the operating speed, temperature, and load. Both oil and grease lubrication can be used. For high-speed applications, oil lubrication is typically preferred for better heat dissipation. Always consult the machine manufacturer's guidelines or FAG's technical documentation for specific lubricant recommendations based on your application's parameters.
