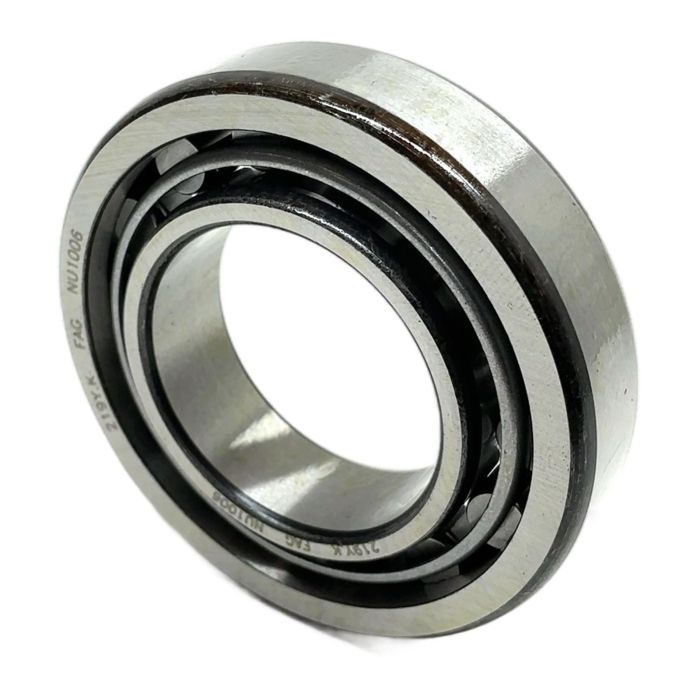

FAG NU1006 K Cylindrical Roller Bearing

Description

The FAG NU1006 K is a high-precision single-row cylindrical roller bearing designed for superior performance in demanding industrial applications. It features a tapered bore (1:12) for secure mounting and is engineered to handle high radial loads at high rotational speeds. The NU design allows for axial displacement, compensating for thermal shaft expansion. This bearing is manufactured by FAG (Schaeffler Group), a leader in bearing technology, ensuring reliability and long service life.

Specifications

• Manufacturer: FAG
• Model: NU1006 K
• Type: Cylindrical Roller Bearing
• Inner Diameter: 30 mm
• Outer Diameter: 55 mm
• Width: 13 mm
• Bore Type: Tapered (1:12)
• EAN: 4012801018753

Label Info

• Part Number: 108080500

Application

This bearing is ideal for use in various industrial machinery, including gearboxes, pumps, compressors, and electric motors, where high radial forces and speeds are present.

Country of Origin

FAG bearings are typically manufactured in Germany or other global facilities adhering to strict quality standards. The exact country of origin may be marked on the product or packaging.

CO2 Impact

Opting for this pre-owned component avoids approximately 0.24 kg of CO2 emissions compared to manufacturing a new one. This saving is equivalent to charging a smartphone 28 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'K' suffix in FAG NU1006 K signify?
The 'K' suffix indicates that the bearing has a tapered bore with a taper of 1:12. This design allows for mounting on a tapered shaft journal or using an adapter sleeve for a cylindrical shaft, enabling a very tight and precise fit.

Is this NU-design bearing suitable for accommodating axial loads?
No, the NU design with its flangeless outer ring is primarily designed to accommodate high radial loads. It can accommodate axial displacement between the shaft and housing due to thermal expansion but cannot support axial loads. For axial loads, a different bearing type like an angular contact or thrust bearing would be required.

What type of lubrication is recommended for the FAG NU1006 K?
The appropriate lubrication (oil or grease) depends heavily on the specific application's operating speed, temperature, and load. For high-speed applications, oil lubrication is often preferred. For moderate speeds and temperatures, a high-quality lithium-based grease is typically suitable. Always consult the machine's maintenance manual or a lubrication expert for the exact recommendation.
