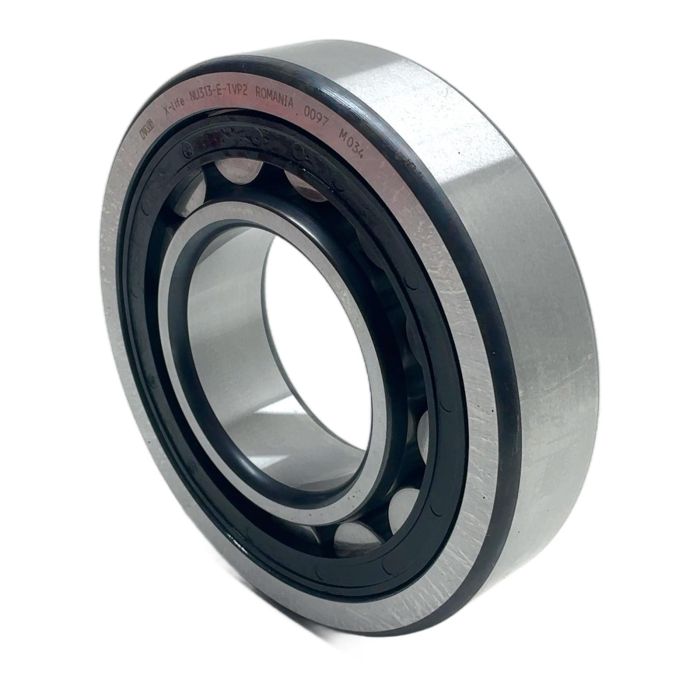

FAG NJ313-E-TVP2 Cylindrical Roller Bearing

Description

The FAG NJ313-E-TVP2 is a premium single-row cylindrical roller bearing from Schaeffler's X-life series. It is designed to handle high radial loads and operate at high speeds. The NJ design features two integral flanges on the outer ring and one on the inner ring, allowing it to provide axial location for a shaft in one direction. The TVP2 designation indicates a durable, glass fiber reinforced polyamide cage.

Specifications

• Manufacturer: FAG (Schaeffler Group)
• Type: NJ313-E-TVP2
• Category: Cylindrical Roller Bearing
• Inner Diameter: 65 mm
• Outer Diameter: 140 mm
• Width: 33 mm
• Cage: Polyamide (TVP2)
• Quality: X-life for enhanced performance and lifespan

Label Info

• Brand: FAG
• Model: NJ313-E-TVP2
• Country of Origin: ROMANIA
• Note: This item is the NJ313-E-TVP2 bearing. The original box shown is for a different model (NU313-E-TVP2).

Application

This bearing is commonly used in demanding industrial applications such as industrial gearboxes, electric motors, pumps, compressors, and power transmission systems where high radial load capacity and moderate axial guidance are required.

Country of Origin

This product is made in Romania.

CO2 Impact

Choosing this reused FAG bearing saves an estimated 5.4 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a car for 27 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

X-life is FAG's seal of quality for particularly high-performance products. Bearings with this designation have an optimized internal geometry, improved surface quality, and higher-grade materials, resulting in a significantly longer service life and higher dynamic load ratings compared to standard bearings.

Yes, the NJ313-E-TVP2 can accommodate axial loads in one direction. The single flange on the inner ring and two on the outer ring allow it to locate the shaft axially, making it suitable for applications requiring light axial guidance.

Bearings with polyamide cages (TVP2) should be stored in their original, unopened packaging in a dry environment with a relatively constant temperature between 15 deg C and 25 deg C to preserve the properties of the cage material. Avoid direct sunlight and sources of heat or humidity.
