FAG KM15 Bearing Lock Nut M75x2

Description

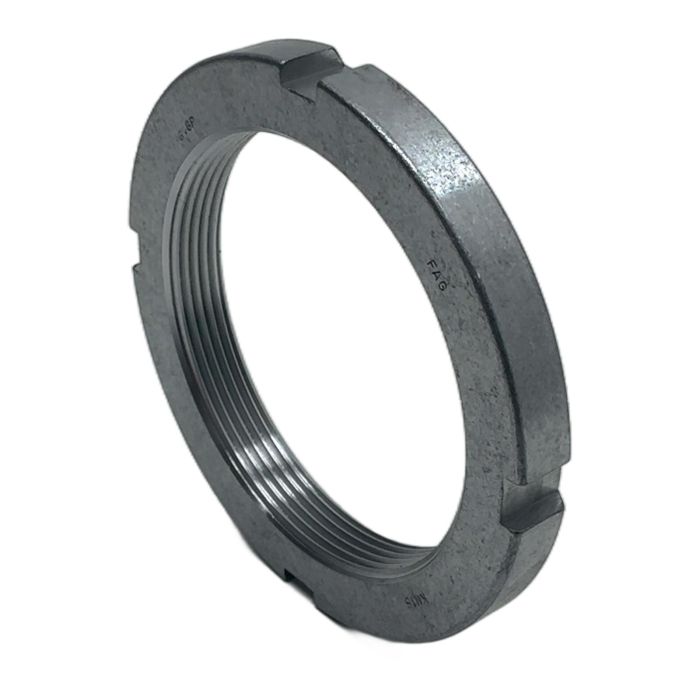

The FAG KM15 is a high-quality metric bearing lock nut, designed for securing bearings and other components onto a shaft or adapter sleeve. Manufactured by FAG, a brand of the Schaeffler Group, it guarantees precision and reliability. The four slots on its circumference allow for easy tightening and securing with a corresponding hook spanner and lock washer.

Specifications

• Thread Size: M75x2
• Outside Diameter: 100 mm
• Width: 12 mm
• Standard: DIN 981
• Material: Steel
• Compatible Lock Washer: MB15

Label Info

• Manufacturer: FAG
• Part Number: KM15
• Order Code: 19091100
• EAN: 4012801052528

Application

This lock nut is widely used in various industrial applications, including gearboxes, pumps, conveyors, and other machinery where bearings need to be precisely located axially on a shaft. It prevents loosening caused by vibration or rotational forces.

Country of Origin

Germany

CO2 Impact

Choosing this surplus component over a new one avoids the emission of approximately 0.5 kg of CO2, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What is the correct tightening procedure for a KM15 lock nut?

Answer: The KM15 should be tightened using a suitable hook spanner (e.g., DIN 1810). For precise bearing clearance, it should be tightened to a specific torque or using the angle of rotation method, as specified in the bearing mounting instructions. It is then secured by bending a tab of the corresponding MB15 lock washer into one of the nut's slots.

Question? What locking device is compatible with the KM15?

Answer: The FAG KM15 lock nut is designed to be used with an MB15 lock washer. The washer has an inner tab that locates in a keyway on the shaft and an outer tab that is bent into a slot on the nut to prevent rotation.

Question? Can this nut be reused after disassembly?

Answer: Yes, in most cases the lock nut can be reused, provided the threads are undamaged and it has not been over-torqued or deformed. However, the lock washer (MB15) is a single-use item and should always be replaced upon reassembly.
