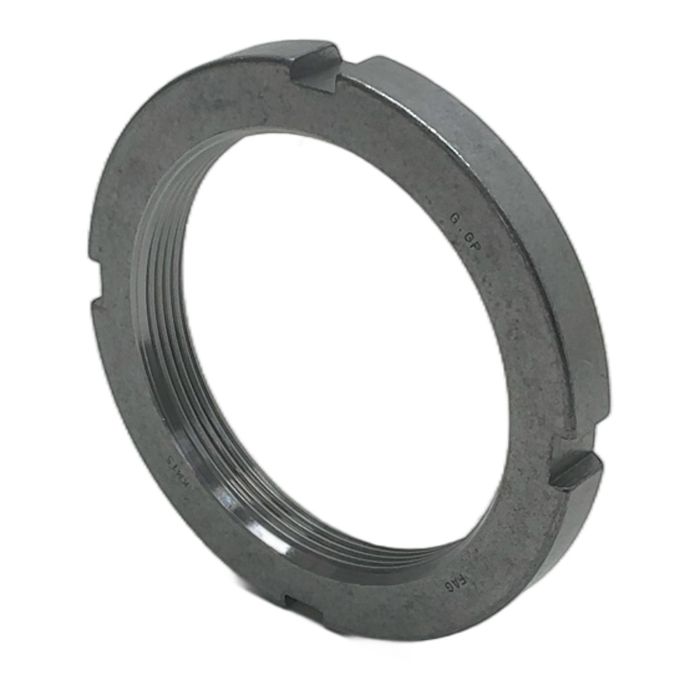

FAG KM15 Lock Nut for Bearing Mounting

Description

The FAG KM15 is a precision-engineered lock nut, also known as a shaft or axle nut, designed according to DIN 981 standards. It is used to securely locate bearings and other machine components on a shaft. This nut facilitates the mounting of bearings with a tapered bore onto a tapered shaft seat or adapter sleeve and is essential for their correct and reliable operation. It features an M75x2 metric fine thread for precise adjustment and tightening.

Specifications

• Brand: FAG
• Model: KM15
• Thread: M75x2
• Outside Diameter: 100 mm
• Width: 12 mm
• Standard: DIN 981
• Material: Steel
• Corresponding Locking Washer: MB15 (not included)

Label Info

• Manufacturer: FAG
• Part Number: KM15
• Order Code: 05011100

Application

Commonly used in mechanical engineering, power transmission, agricultural machinery, and industrial gearboxes to secure bearings, ensuring longevity and performance.

Country of Origin

Germany

CO2 Impact

By choosing this reused part, you are contributing to a circular economy and avoiding approximately 0.69 kg of CO2 emissions compared to a new production. This is equivalent to the emissions of driving a car for 3.5 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The KM15 should be tightened to remove clearance and then secured using a corresponding MB15 locking washer. The washer tab is bent into one of the four slots on the nut's circumference to prevent it from loosening.

Yes, the KM15 lock nut is specifically designed for use with adapter sleeves (e.g., H series) and withdrawal sleeves (e.g., AH series) to mount bearings with a tapered bore.

It is strongly recommended to use a new MB15 locking washer each time the nut is installed to ensure a secure and reliable lock. Reusing a washer can lead to metal fatigue and failure of the locking tab.
