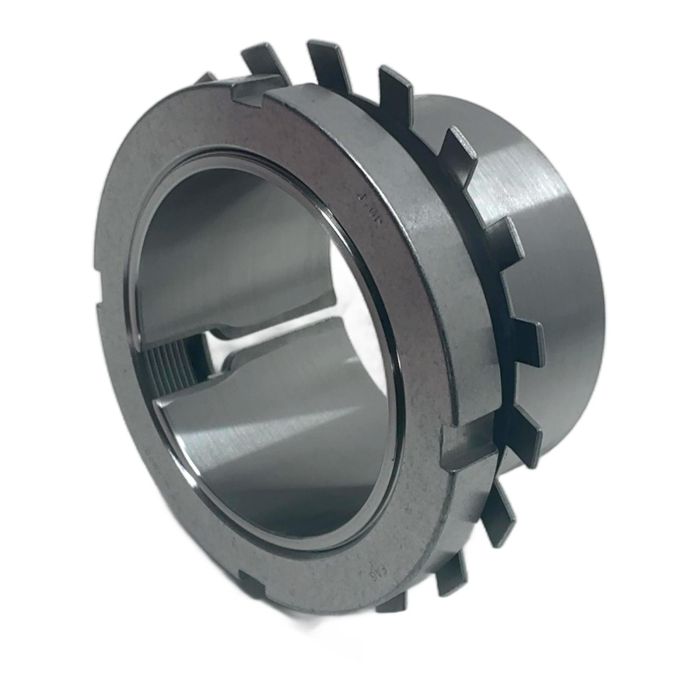

FAG H320 Adapter Sleeve

Description

The FAG H320 is a robust adapter sleeve designed for mounting tapered bore bearings onto cylindrical shafts. It allows for easy installation, secure positioning, and straightforward dismounting of bearings. Manufactured by FAG, a leader in bearing technology, this sleeve is made from high-grade steel for maximum durability and reliability in industrial machinery.

Specifications

• Manufacturer: FAG
• Part Number: H320
• Type: Adapter Sleeve
• Bore Diameter (d1): 90 mm
• Corresponding Bearings: 1320 K, 2220 K, 22220 K, 23220 K
• Material: Steel

Label Info

• Model: H320
• Part Nr: 24011300
• EAN: 4012801217262

Application

Adapter sleeves like the H320 are widely used in various industries, including agriculture, mining, manufacturing, and material handling. They are essential for mounting self-aligning ball bearings, spherical roller bearings, and CARB toroidal roller bearings on smooth or stepped shafts.

Country of Origin

This product is manufactured in China.

CO2 Impact

Choosing this new-old-stock adapter sleeve prevents the emission of approximately 4.2 kg of CO2, which would have been generated during the manufacturing of a new one. This saving is comparable to the emissions from driving a car for 21 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Typically, adapter sleeves are supplied as a complete unit with the appropriate lock nut and locking washer. For the H320, this would be the KM 20 lock nut and MB 20 locking washer. Please verify the contents upon receipt.

Mounting involves pushing the sleeve into the bearing bore and then pressing the assembly onto the shaft to the correct position. The bearing is then secured by tightening the lock nut, which drives it up the taper. It is crucial to use proper tools and not to overtighten, as this can reduce the bearing's internal clearance and lead to premature failure. Refer to the FAG mounting instructions for detailed guidance.

The H320 sleeve is designed for use with bearings that have a 1:12 tapered bore, such as series 1320, 2220, 22220, and 23220.
