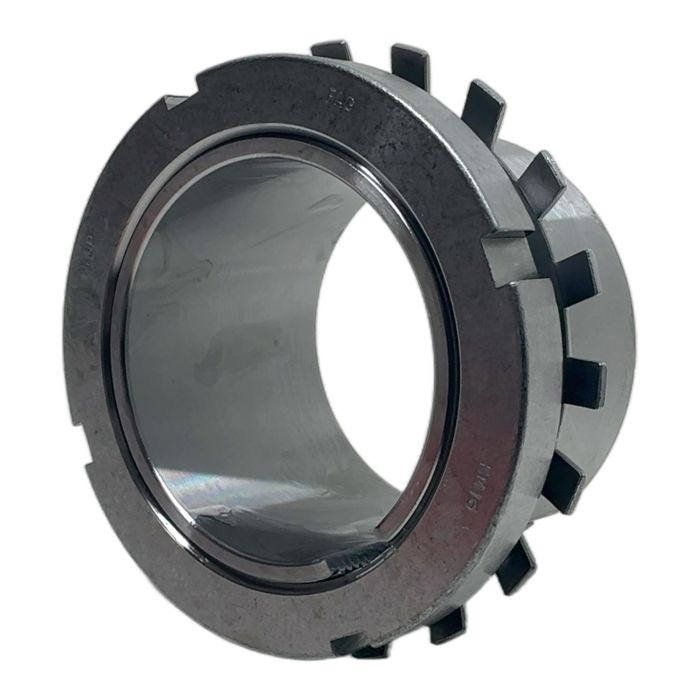

FAG H316 Adapter Sleeve for Bearings

Description

The FAG H316 is a high-precision adapter sleeve designed for mounting bearings with a tapered bore onto a 75mm cylindrical shaft. As a standard component from FAG, a world leader in bearing technology, it guarantees a secure and reliable fit, simplifying installation and dismounting procedures. This component is crucial for ensuring proper alignment and operational longevity in a wide range of machinery.

Specifications

• Manufacturer: FAG
• Type: Adapter Sleeve
• Model: H316
• Shaft Diameter (d1): 75 mm
• Outside Diameter (d): 105 mm
• Width (B1): 69 mm
• Material: Steel

Label Info

• Part Number: 08011300
• EAN: 4012801012172

Application

Used extensively in industrial equipment such as conveyors, agricultural machinery, and power transmission systems where secure bearing mounting on straight shafts is required. It is compatible with various bearing types, including self-aligning ball bearings and spherical roller bearings.

Country of Origin

This product is manufactured in Japan, ensuring high standards of quality and precision engineering.

CO2 Impact

By purchasing this new-old-stock item, you contribute to a circular economy and avoid the emission of approximately 2.8 kg of CO2, which would be generated in the production of a new unit. This saving is comparable to the emissions of a 14 km car journey.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the correct procedure for mounting a bearing onto an H316 adapter sleeve?

Answer:

The H316 sleeve is for a 75mm shaft. After lightly oiling the shaft and sleeve taper, position the bearing on the sleeve. Use an FAG lock nut (like KM16) and a lock washer (MB16), not included, to drive the bearing up the taper. Tighten the nut until the specified radial internal clearance reduction is achieved, then secure it with the lock washer.

Which bearings are compatible with the FAG H316 sleeve?

Answer:

The H316 adapter sleeve is compatible with bearings that have an 80mm tapered bore. Common compatible series include self-aligning ball bearings (e.g., 1216 K) and spherical roller bearings (e.g., 22216 E1K, 23216 CCK). Always verify the bearing's bore matches the sleeve's specifications.

What does the 'H' in H316 signify?

Answer:

The 'H' prefix designates a standard metric adapter sleeve. The number '316' encodes its dimensions. It is designed to mount bearings from the 16-series (like a 22216 bearing with an 80mm tapered bore) onto a smaller cylindrical shaft with a diameter of 75mm.
