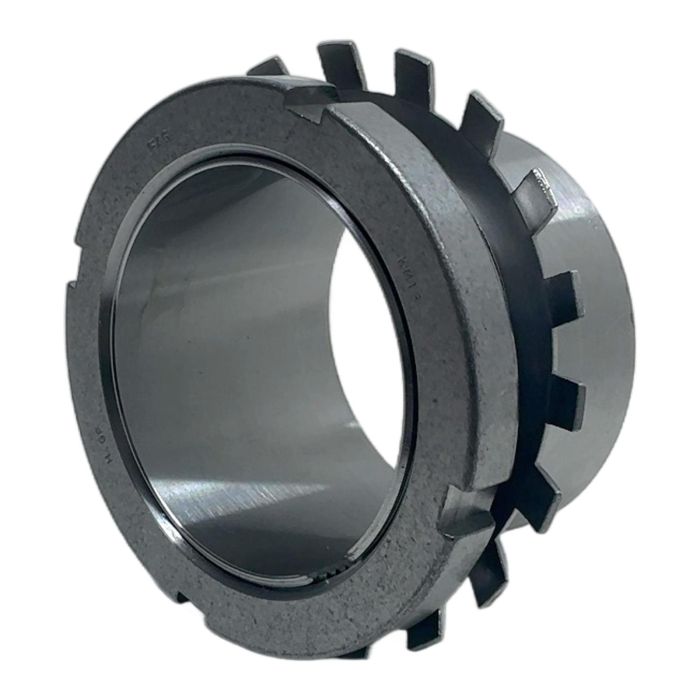

FAG H313 Adapter Sleeve for 60mm Shafts

Description

The FAG H313 is a precision-engineered adapter sleeve designed for the secure mounting of rolling bearings with a tapered bore onto cylindrical shafts. As a standard component according to DIN 5415, it simplifies installation and removal, providing a reliable and cost-effective solution for various industrial applications. This sleeve ensures a tight fit and correct positioning of the bearing, which is critical for optimal performance and longevity.

Specifications

• Shaft Diameter (d1): 60 mm
• Outside Diameter at large end of taper (d3): 85 mm
• Overall Width (B1): 50 mm
• Material: High-grade steel
• Compatibility: Suitable for bearings such as 1313, 2313, 22313
• Required accessories (not included): Lock nut KM13, Lock washer MB13

Label Info

• Brand: FAG
• Model: H313
• Part Number: 07031200
• EAN: 4012801217088

Application

This adapter sleeve is widely used in industrial gearboxes, conveyor systems, agricultural machinery, and general mechanical engineering where bearings need to be mounted on shafts without a pre-machined shoulder.

Country of Origin

Germany

CO2 Impact

By purchasing this reused FAG adapter sleeve, you contribute to a significant environmental saving, avoiding the emission of approximately 1.02 kg of CO2 associated with the production of a new unit. This is a smart choice for both your machinery and the planet.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The FAG H313 adapter sleeve requires a KM13 lock nut and an MB13 lock washer for proper installation and security. These items are typically sold separately.

The H313 is specifically designed for mounting on a cylindrical shaft with a diameter of 60 mm.

Adapter sleeves allow bearings with a tapered bore to be mounted on smooth or stepped cylindrical shafts without the need for shoulders or special machining. This simplifies the overall design, reduces manufacturing costs, and makes installation and dismounting much easier.
