FAG H310 Adapter Sleeve for Secure Bearing Mounting

Description

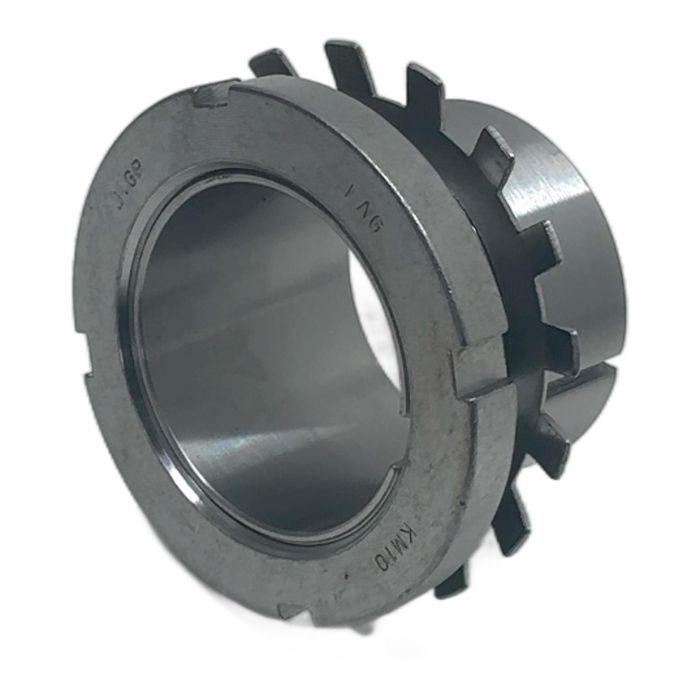

The FAG H310 is a high-precision adapter sleeve designed for mounting bearings with a tapered bore onto a 45mm cylindrical shaft. As a standard component from a world-leading manufacturer, it provides a reliable and easy-to-install solution for a wide range of industrial applications. This sleeve assembly includes the necessary lock nut (KM10) and lock washer (MB10) to ensure a secure and stable fit, preventing axial movement and simplifying bearing installation and removal.

Specifications

• Manufacturer: FAG
• Type: Adapter Sleeve
• Model: H310
• Shaft Diameter (d1): 45 mm
• Outside Diameter (d): 65 mm
• Width (B1): 41 mm
• Included Components: KM10 Lock Nut, MB10 Lock Washer
• Material: High-grade steel

Application

Commonly used in agricultural machinery, conveyor systems, industrial fans, and general mechanical engineering to securely locate bearings on smooth or stepped shafts.

Country of Origin

Manufactured by FAG in Germany, ensuring top-tier quality and performance standards.

CO2 Impact

Opting for this component saves 0.88 kg of CO2 compared to new production, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The correct method involves driving the bearing up the tapered sleeve to achieve the required reduction in radial internal clearance. This is typically done by tightening the KM10 lock nut. It is crucial to use a feeler gauge to measure the clearance reduction and avoid over-tightening, which can damage the bearing.

Yes, adapter sleeves are standardized according to ISO 2982-1. An H310 sleeve from any reputable manufacturer like FAG, SKF, or NSK will have the same critical dimensions and can be used interchangeably with corresponding bearings (e.g., 22210 K) from other brands.

The MB10 lock washer is a critical safety component. After the KM10 lock nut is tightened to the correct position, one of the tabs on the outside of the washer is bent into one of the corresponding slots on the lock nut. This prevents the nut from loosening due to vibration or operational forces, ensuring the bearing remains securely mounted on the shaft.
