FAG H309 Adapter Sleeve for Bearing Mounting

Description

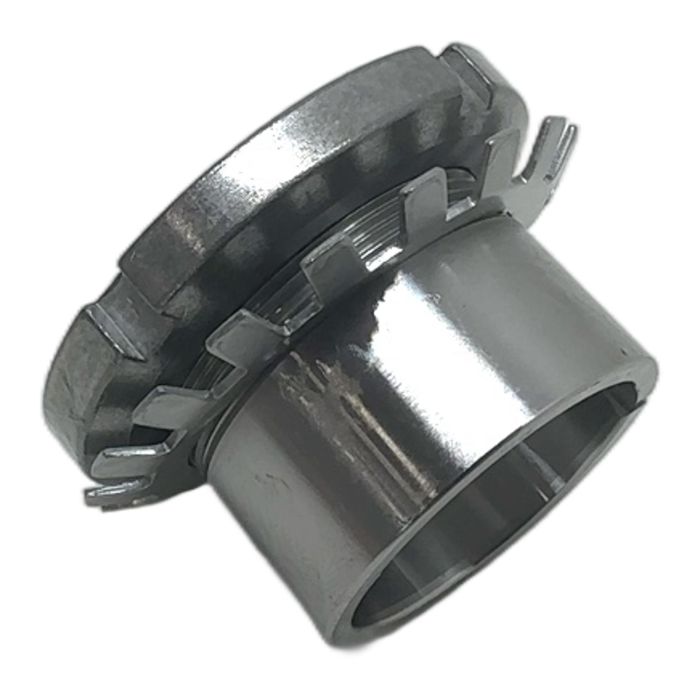

The FAG H309 is a metric adapter sleeve designed for securely mounting bearings with a tapered bore onto 40mm cylindrical shafts. As a product from a leading global manufacturer, this sleeve guarantees high precision and reliability for demanding industrial applications. The package includes the adapter sleeve, a lock nut (KM 9), and a lock washer (MB 9) to provide a complete mounting solution.

Specifications

• Manufacturer: FAG
• Model: H309
• Product Type: Adapter Sleeve
• Shaft Diameter (d1): 40 mm
• Outer Diameter (d): 62 mm
• Total Length (l1): 52 mm
• Material: Steel

Label Info

• Part Number: H309
• Order Code: 02051100
• EAN: 4012801052337

Application

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical shaft seating. They can be used on plain shafts or stepped shafts, simplifying the arrangement and installation process in equipment such as conveyors, industrial fans, and agricultural machinery.

Country of Origin

FAG is a brand of the Schaeffler Group, headquartered in Germany, with manufacturing facilities worldwide.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and have helped avoid approximately 0.94 kg of CO2 emissions associated with the production of a new part. This is a sustainable choice for your maintenance needs.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the correct procedure for tightening the lock nut on the H309 sleeve?

Answer: The lock nut should be tightened until the required reduction in radial internal clearance of the bearing is achieved. This is often done using the drive-up method with a hook spanner or by measuring the axial displacement. Refer to the FAG mounting instructions for specific values based on the bearing type.

Question?

Which bearings are compatible with the FAG H309 adapter sleeve?

Answer: The H309 sleeve is compatible with bearings having a 45mm tapered bore, such as self-aligning ball bearings (e.g., 1309 EKTN9), and spherical roller bearings (e.g., 21309-E1-K, 22209-E1-K, 22309-E1-K).

Question?

How can I ensure the correct axial drive-up distance when mounting a bearing with this sleeve?

Answer: The axial drive-up distance is critical for achieving the correct operational clearance. It is typically measured from the position where the bearing bore makes firm contact with the sleeve. The exact distance depends on the bearing type and size and can be found in the manufacturer's technical documentation or mounting tables.
