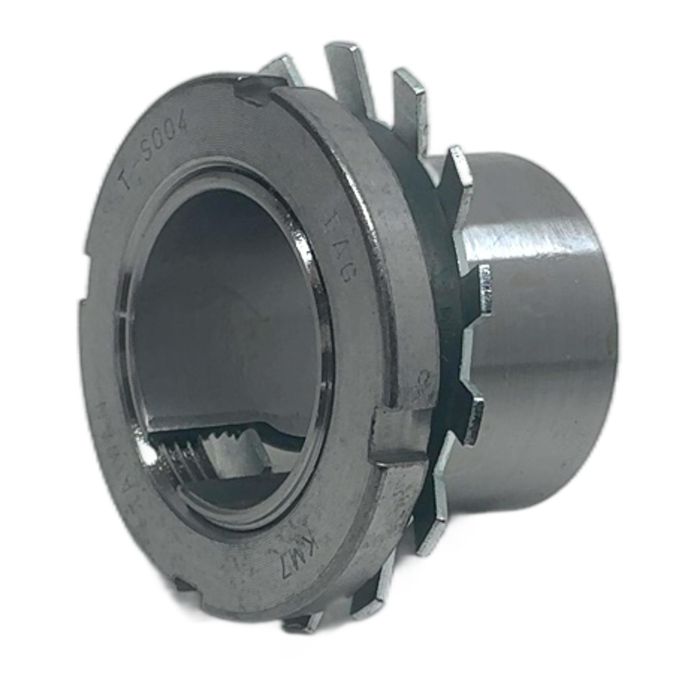

FAG H307 Adapter Sleeve

Description

The FAG H307 is a high-precision adapter sleeve designed for mounting bearings with a tapered bore onto 30mm cylindrical shafts. It simplifies installation and ensures a secure, concentric fit, which is crucial for optimal bearing performance and longevity. This sleeve comes complete with the necessary lock nut and tab washer for a complete mounting solution.

Specifications

• Manufacturer: FAG
• Type: Adapter Sleeve
• Model: H307
• Shaft Diameter (d1): 30 mm
• Outer Diameter (d): 47 mm
• Overall Width (B1): 33 mm
• Material: Steel

Label Info

• Brand: FAG
• Part Number: H307
• Country of Origin: Taiwan

Application

Used in a wide range of industrial applications, including agricultural machinery, conveyors, industrial fans, and power transmission systems where secure bearing mounting on smooth or stepped shafts is required.

Country of Origin

This FAG adapter sleeve is manufactured in Taiwan.

CO2 Impact

By choosing this pre-owned component, you are helping to avoid the emission of approximately 0.44 kg of CO2. This is the environmental equivalent of driving a car for 2.2 kilometers or charging a smartphone over 50 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The H307 adapter sleeve is designed for use with bearings with a tapered bore (K suffix), such as 1207-K, 2207-K, 22207-E1-K, and 2307-K.

The lock nut should be tightened to achieve the correct radial internal clearance reduction in the bearing. This is typically done using the angle of rotation method or by measuring clearance directly. Always refer to the FAG mounting instructions for precise details.

Yes, a hook spanner (or impact spanner) is required to properly tighten the lock nut. The specific spanner size depends on the outer diameter of the lock nut.
