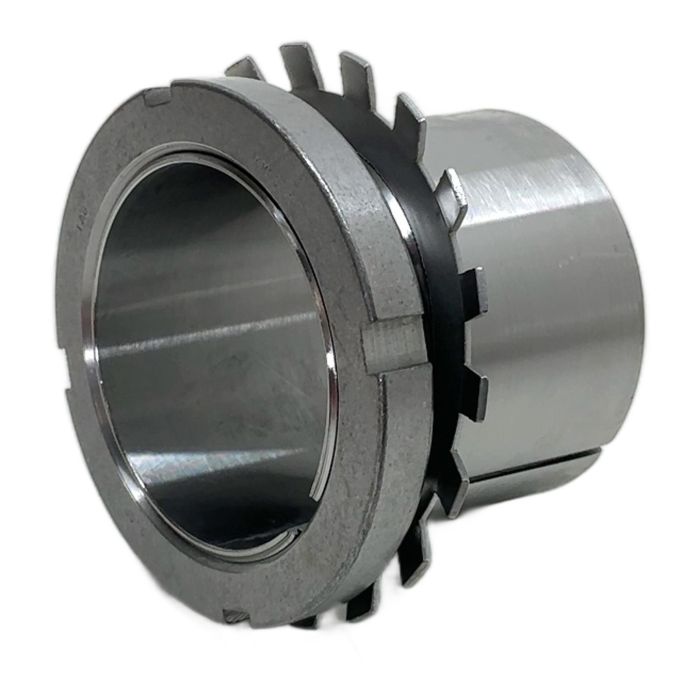

FAG H2313 Adapter Sleeve for 60mm Shafts

Description

The FAG H2313 is a high-precision adapter sleeve designed for mounting bearings with a tapered bore onto a 60 mm cylindrical shaft. This complete assembly, including the sleeve, KM13 locknut, and MB13 lock washer, simplifies installation and ensures a secure, concentric fit. Manufactured by FAG, a leader in bearing technology, this component guarantees reliability and longevity in various industrial machinery.

Specifications

• Manufacturer: FAG
• Part Number: H2313
• Shaft Diameter (d1): 60 mm
• Taper: 1:12
• Included Locknut: KM13
• Included Lock Washer: MB13
• Material: High-quality bearing steel

Label Info

• Brand: FAG
• Model: H2313
• Part Number: 07021200
• EAN: 4012801052375

Application

Used extensively in mechanical power transmission, industrial gearboxes, agricultural machinery, and conveyor systems for securing bearings like spherical roller bearings (e.g., 22313) and self-aligning ball bearings (e.g., 1313 K) to shafts.

Country of Origin

This FAG adapter sleeve is typically manufactured in Germany.

CO2 Impact

By purchasing this pre-owned but new-in-box adapter sleeve, you contribute to a circular economy and avoid the emission of approximately 1.8 kg of CO2 associated with the production of a new steel part. This saving is comparable to driving a car for 9 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the correct procedure for mounting an H2313 adapter sleeve?

The sleeve is pushed onto the shaft to the desired position. The bearing is then pushed onto the sleeve's taper until the required reduction in radial internal clearance is achieved. The assembly is secured using the KM13 locknut and MB13 lock washer.

This sleeve is designed for bearings with a 65 mm tapered bore (taper 1:12), such as spherical roller bearings (e.g., 22313-E1), self-aligning ball bearings (e.g., 1313-K), and certain CARB toroidal roller bearings.

Yes, it is recommended to apply a thin coat of light oil to the mating surfaces of the sleeve, shaft, and bearing bore to prevent fretting corrosion and to facilitate mounting and dismounting.
