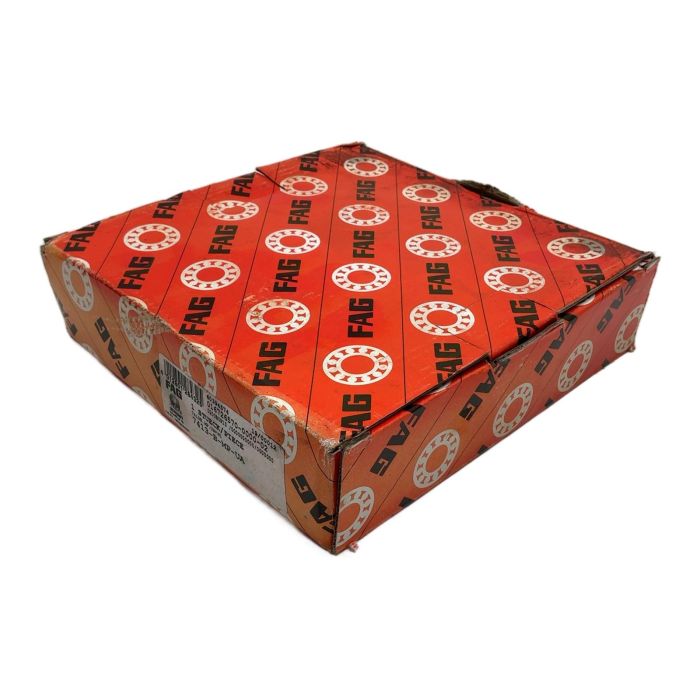

FAG 7413-B-MP-UA Angular Contact Ball Bearing

Description

This is a FAG 7413-B-MP-UA, a high-precision single-row angular contact ball bearing. As part of the X-life series, it offers optimized internal geometry for higher load ratings and a significantly longer service life. Its universal design (UA) allows for flexible mounting in pairs, and the solid brass cage (MP) ensures robust performance even under demanding conditions.

Specifications

• Manufacturer: FAG
• Type: 7413-B-MP-UA
• Inner Diameter: 65 mm
• Outer Diameter: 160 mm
• Width: 37 mm
• Contact Angle: 40 deg.
• Cage Material: Brass
• Design: Universal matching (UA), X-life quality

Label Info

• Brand: FAG
• Model: 7413-B-MP-UA
• EAN: 4012801284325

Application

Ideal for use in industrial machinery requiring high precision and reliability, such as machine tool spindles, pumps, compressors, and industrial gearboxes.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component saves approximately 7.3 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial process.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'UA' suffix indicates a universal design. This means the bearing can be mounted in pairs in either an X (face-to-face), O (back-to-back), or tandem arrangement while maintaining the correct internal clearance or preload.

Yes, it is dimensionally interchangeable. However, 'X-life' is FAG's quality seal for particularly high-performance products. It offers higher dynamic load ratings and a longer service life compared to the previous standard, due to optimized geometry and improved surfaces.

The appropriate lubrication (oil or grease) depends heavily on the operating conditions, such as speed, load, and temperature. For high-speed applications, oil lubrication is often preferred. For moderate speeds, a high-quality lithium-based grease is suitable. Always consult the machine's maintenance manual or a FAG lubrication guide for specific recommendations.
