FAG 7405-B-MP-UA Angular Contact Ball Bearing

Description

This is a single-row angular contact ball bearing, model 7405-B-MP-UA, from FAG, a brand of the Schaeffler Group. It is designed to accommodate combined radial and axial loads and is suitable for high-speed operation. The universal matching design (UA) allows for versatile pairing in various configurations (X, O, or tandem).

Specifications

• Inner Diameter (d): 25 mm
• Outer Diameter (D): 80 mm
• Width (B): 21 mm
• Contact Angle: 40 degrees
• Cage Material: Solid Brass (MP suffix)
• Design: Universal matching for paired mounting (UA suffix)
• Load Direction: Axial and Radial

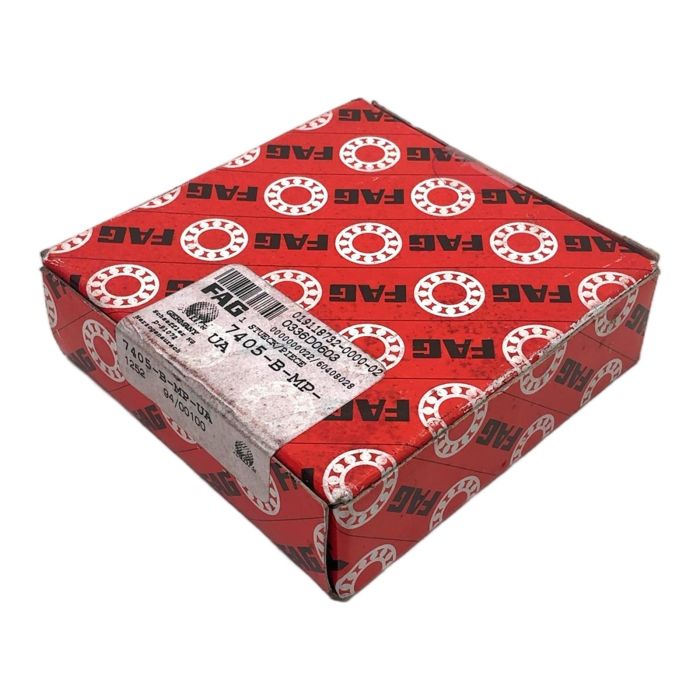

Label Info

• Brand: FAG (Schaeffler KG)
• Model: 7405-B-MP-UA
• Part Number: 019118732-0000-02

Application

This type of precision bearing is commonly used in applications requiring high rigidity and load-carrying capacity, such as in machine tool spindles, industrial pumps, compressors, and gearboxes.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component helps avoid approximately 1.2 kg of CO2 emissions compared to manufacturing a new one, which is equivalent to driving a car for 6 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'UA' suffix indicates a universal design for matching. This means the bearing has specific clearance/preload characteristics that allow it to be mounted in pairs (back-to-back, face-to-face, or tandem) without needing special shims or adjustments, ensuring proper load distribution.

The FAG 7405-B-MP-UA with its solid brass cage ('MP') is generally suitable for operating temperatures up to 120 deg C. For applications exceeding this, consult the manufacturer's datasheet for potential limitations or requirements for special lubrication.

While angular contact ball bearings are designed to accommodate combined (axial and radial) loads, they must always be subjected to an axial load to function correctly. They cannot be used for purely radial loads, as this would lead to improper ball-raceway contact and premature failure. They are typically used in pairs to handle radial loads and axial loads in both directions.
