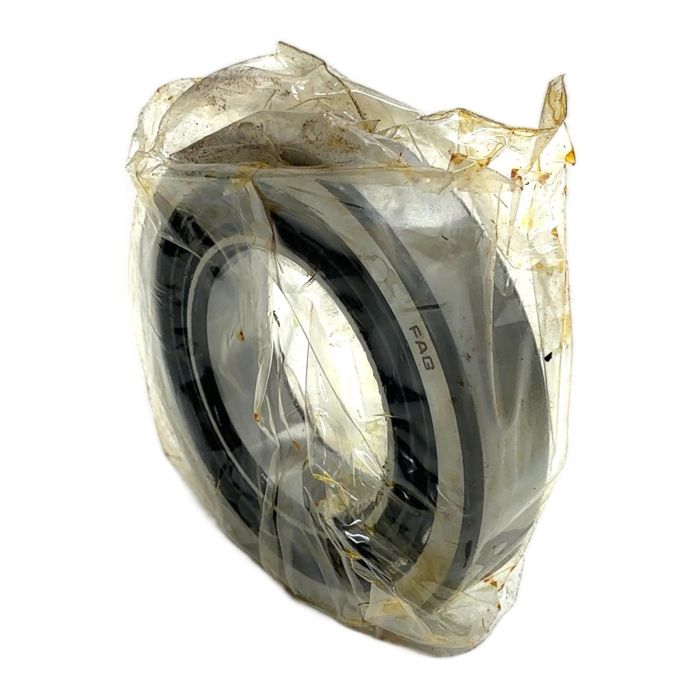

FAG 7211B.TVP Angular Contact Ball Bearing

Description

The FAG 7211B.TVP is a high-precision single row angular contact ball bearing designed for applications requiring high rigidity and load-carrying capacity. It is suitable for accommodating both radial and axial loads in one direction. As part of the Schaeffler Group, FAG bearings are renowned for their quality and durability, making this an excellent choice for demanding industrial machinery.

Specifications

• Manufacturer: FAG
• Model: 7211B.TVP
• Inner Diameter: 55 mm
• Outer Diameter: 100 mm
• Width: 21 mm
• Contact Angle: 40 degrees
• Cage Material: Glass fibre reinforced polyamide (TVP)
• Bearing Type: Single Row Angular Contact Ball Bearing

Label Info

• Brand: FAG
• Part Number: 7211B.TVP
• Origin: Germany

Application

These bearings are commonly used in machine tool spindles, high-frequency motors, pumps, compressors, and gearboxes where high accuracy and speed are critical.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component helps avoid approximately 1.27 kg of CO2 emissions compared to manufacturing a new one, supporting sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. It is a New Old Stock (NOS) product, meaning it is unused in its original, sealed packaging, though the outer box may show signs of shelf wear. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'B' indicates a 40-degree contact angle, which provides high axial load capacity. The 'TVP' refers to the cage material, which is a solid cage made of glass fibre reinforced polyamide, known for its low weight, elasticity, and good sliding properties.

No, as a single row angular contact ball bearing, it is designed to accommodate axial loads in only one direction. For axial loads in both directions, these bearings must be used in pairs, typically in a back-to-back or face-to-face arrangement.

Bearings with polyamide cages are suitable for both grease and oil lubrication. However, certain synthetic oils or greases with synthetic base oils, as well as lubricants with EP additives, may impair the cage's operating life at high temperatures. It is crucial to check compatibility with the lubricant manufacturer's recommendations.
