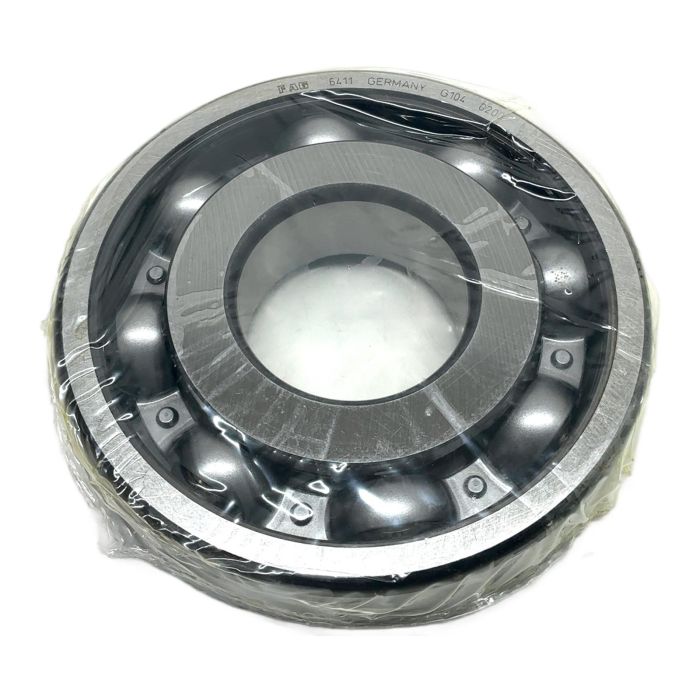

FAG 6411 N1 Deep Groove Ball Bearing

Description

The FAG 6411 N1 is a premium single-row deep groove ball bearing, designed for superior performance and reliability. Manufactured in Germany by FAG, it supports both radial and axial loads efficiently. Its 55x140x33mm dimensions make it suitable for a wide array of industrial machinery. The 'N1' suffix indicates it features a groove in the outer ring for a snap ring, simplifying axial location within a housing.

Specifications

• Manufacturer: FAG
• Part Number: 6411 N1
• Inner Diameter: 55 mm
• Outer Diameter: 140 mm
• Width: 33 mm
• Basic Dynamic Load Rating (C): 104 kN
• Basic Static Load Rating (C0): 67 kN
• Cage Material: Steel

Label Info

• EAN: 4012801206280
• Order Code: 013724771-0000-02

Application

This bearing is commonly used in electric motors, pumps, gearboxes, conveyors, and other rotating machinery where high reliability is essential.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this surplus item saves approximately 4.8 kg of CO2 compared to producing a new one, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'N1' suffix signify on the FAG 6411 bearing?

The 'N' indicates a groove in the outer ring, designed to accommodate a snap ring (retaining ring). The '1' specifies a particular type of retaining ring is intended for use, which facilitates secure axial location of the bearing in a housing assembly.

The FAG 6411 has a limiting speed of approximately 6700 rpm with standard grease lubrication. For applications consistently running near or above this speed, consulting the machine's design manual for oil lubrication requirements or specialized high-speed bearings is recommended.

Yes, FAG deep groove ball bearings of this type are typically supplied pre-lubricated from the factory with a high-quality, general-purpose grease suitable for a wide range of operating temperatures and conditions.
