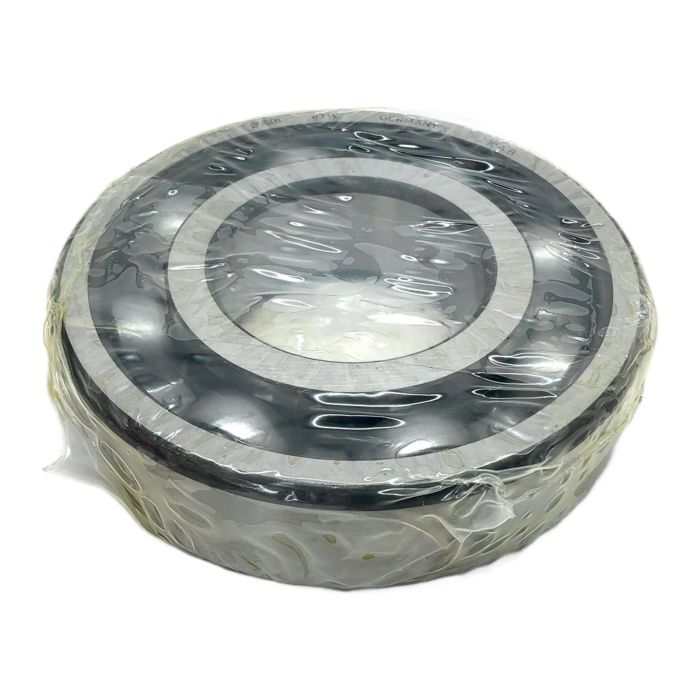

FAG 6311 Deep Groove Ball Bearing

Description

This is a genuine FAG 6311 single-row deep groove ball bearing, a versatile component for a wide range of industrial applications. Manufactured in Germany by Schaeffler, this bearing is engineered for high precision and durability. Its open design is ideal for applications where lubrication is supplied within the machinery housing, allowing for high-speed operation. It is suitable for accommodating both radial and axial loads.

Specifications

• Manufacturer: FAG
• Part Number: 6311
• Type: Deep Groove Ball Bearing
• Inner Diameter: 55 mm
• Outer Diameter: 120 mm
• Width: 29 mm
• Seals/Shields: None (Open Type)
• Cage Material: Steel
• Dynamic Load Rating: 74,000 N
• Static Load Rating: 49,000 N

Label Info

• EAN: 4012801165648
• Part No: 6311

Application

Commonly used in electric motors, pumps, gearboxes, industrial fans, and material handling equipment where reliability and high rotational speed are required.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this surplus bearing over a new one saves approximately 2.7 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the open design (no suffix) of the FAG 6311 bearing mean for its application?

The open design means this bearing has no seals or shields. It is intended for applications where it will be lubricated with oil or grease within a sealed housing, protecting it from contaminants. This design allows for higher running speeds compared to sealed or shielded versions.

Standard FAG 6311 bearings are typically stabilized for operating temperatures up to 120 deg C. For higher temperatures, special variants with specific heat treatments and radial internal clearance (e.g., C3 or C4 suffix) would be required. This is a standard clearance bearing.

Authentic FAG bearings have high-quality laser markings on the races, which are clear and precise. The packaging, including the box quality and label details, should be checked against official FAG standards. Schaeffler also offers authenticity check apps that can scan the data matrix code on newer boxes.
