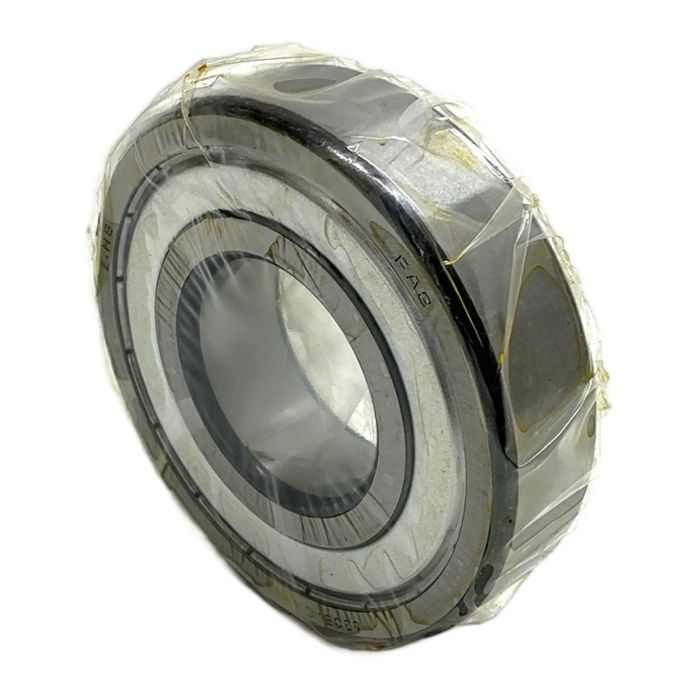

FAG 6308.2ZR.C3 Deep Groove Ball Bearing

Description

The FAG 6308.2ZR.C3 is a single-row deep groove ball bearing known for its versatility and robust performance. Manufactured by FAG, a world leader in bearing technology, this component is designed to handle both radial and axial loads in high-speed applications. It comes pre-lubricated for life and features metal shields on both sides for protection against contaminants.

Specifications

• Manufacturer: FAG
• Part Number: 6308.2ZR.C3
• Bore Diameter (d): 40 mm
• Outer Diameter (D): 90 mm
• Width (B): 23 mm
• Seals/Shields: 2ZR (Non-contact metal shields on both sides)
• Internal Clearance: C3 (Greater than normal)
• Material: Chrome Steel
• Weight: Approx. 0.62 kg

Application

This bearing is widely used in electric motors, gearboxes, pumps, industrial machinery, and automotive applications where reliability and high rotational speeds are essential.

Country of Origin

Germany

CO2 Impact

By purchasing this reused bearing, you are contributing to a circular economy and have helped avoid approximately 1.24 kg of CO2 emissions compared to buying a new one.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the '2ZR.C3' suffix mean on this FAG 6308 bearing?

The '2ZR' (or 2Z) indicates that the bearing has non-contact metal shields on both sides, which protect the interior from larger contaminants. The 'C3' denotes a radial internal clearance that is greater than the standard 'Normal' clearance, making it suitable for applications with high speeds or significant temperature differences between the inner and outer rings.

Yes, FAG bearings with the 2ZR suffix are supplied greased for life with a high-quality lubricant. They are ready for immediate installation and typically do not require any additional maintenance or relubrication under normal operating conditions.

Absolutely. The 6308 designation is an ISO standard size (40x90x23mm). This FAG bearing is a direct dimensional equivalent to an SKF 6308-2Z/C3, NSK 6308ZZC3, or similar models from other major manufacturers. Always ensure the suffixes (seals and clearance) match your application's requirements.
