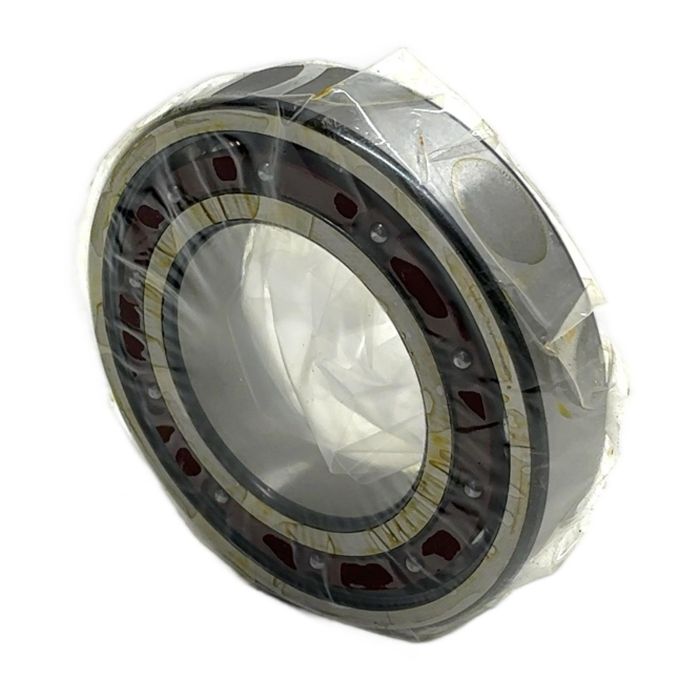

FAG 6210TB.P63 High-Precision Ball Bearing

Description

The FAG 6210TB.P63 is a single row deep groove ball bearing engineered for superior performance in high-speed and precision applications. Its robust construction and high-quality materials ensure long-lasting reliability and operational efficiency. This bearing is ideal for use in electric motors, pumps, gearboxes, and other industrial machinery where precision and durability are critical.

Specifications

• Bore Diameter: 50 mm
• Outer Diameter: 90 mm
• Width: 20 mm
• Cage Material: Textile Laminated Phenolic Resin (TB)
• Precision Class: P6
• Internal Clearance: C3 (indicated by P63)
• Bearing Type: Deep Groove Ball Bearing
• Rows: Single

Label Info

• Brand: FAG
• Model: 6210TB.P63

Application

This bearing is designed for applications requiring high rotational speeds and precise shaft guidance. Common uses include industrial automation, machine tools, and power transmission systems.

Country of Origin

Manufactured by FAG, a brand of the Schaeffler Group, originating from Germany. Specific country of manufacture may vary based on production batch.

CO2 Impact

By purchasing this pre-owned bearing, you contribute to a circular economy and avoid the emission of approximately 0.93 kg of CO2 associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. It is a new-old-stock (NOS) item, meaning it is new and unused but may have been stored for some time. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'TB' indicates a cage made from textile-laminated phenolic resin, guided by the inner ring, which is excellent for high-speed operation. 'P63' combines two specifications: 'P6' for a higher-than-standard dimensional and running accuracy, and 'C3' for a radial internal clearance that is greater than normal, accommodating thermal expansion.

The phenolic resin cage (TB) has a continuous operating temperature limit of around 120 deg C (250 deg F). While this is good for many high-speed applications, for environments consistently exceeding this temperature, a bearing with a metal cage would be more appropriate.

This bearing is typically supplied preserved with an anti-corrosion agent but un-greased. The choice of lubricant (grease or oil) depends entirely on the application's speed, load, and operating temperature. Always consult your machine's maintenance manual for the correct lubricant type and relubrication interval.
