FAG 6016.2RSR Deep Groove Ball Bearing

Description

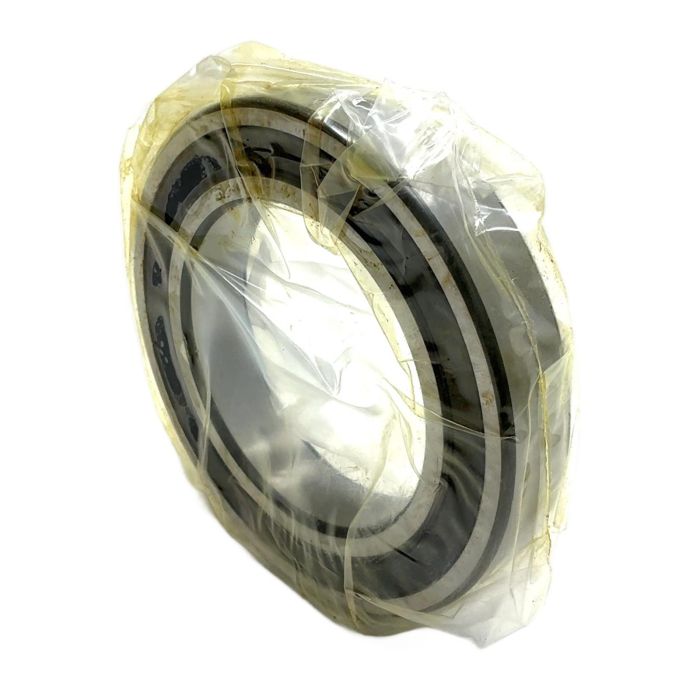

This is a FAG 6016.2RSR single-row deep groove ball bearing, a versatile and widely used component in mechanical engineering. Manufactured in Germany, it adheres to the highest quality standards. The bearing is sealed on both sides to provide excellent protection against dust and moisture, while retaining the factory grease. This item is new old stock in its original, sealed inner packaging.

Specifications

• Manufacturer: FAG
• Type: 6016.2RSR
• Inner Diameter: 80 mm
• Outer Diameter: 125 mm
• Width: 22 mm
• Seals: 2RSR (Contact seals on both sides, NBR)
• Cage Material: Steel
• Bearing Material: Bearing Steel

Label Info

• Model: 6016.2RSR
• EAN: 4012801201506

Application

Deep groove ball bearings like the 6016.2RSR are suitable for high and very high speeds, accommodate radial and axial loads in both directions, and require little maintenance. Common applications include electric motors, gearboxes, agricultural machinery, and industrial pumps.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused bearing, you are saving approximately 1.7 kg of CO2 compared to the production of a new one. This is a sustainable choice for your maintenance needs.

Availability

This product is in stock and ready for immediate dispatch. The outer packaging may show signs of wear, but the product itself is in pristine, unused condition. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the '2RSR' suffix signify on the FAG 6016 bearing?
The '2RSR' designation from FAG indicates that the bearing has lip (contact) seals made of Nitrile Butadiene Rubber (NBR) on both sides. These seals provide superior protection against contaminants and better grease retention compared to non-contact shields.

Is this bearing pre-lubricated and ready for installation?
Yes, all FAG bearings with seals or shields, including the 6016.2RSR, are pre-filled with a high-quality grease at the factory. They are designed to be maintenance-free for their entire operational life and are ready for immediate installation.

Can this FAG 6016.2RSR be used in high-temperature applications?
The standard NBR seals (RSR) have a continuous operating temperature limit of approximately 100 deg Celsius. For applications with consistently higher temperatures, a bearing with different seal materials (e.g., FKM/Viton) or an open bearing with specialized grease would be required.
