FAG 51103 Thrust Ball Bearing

Description

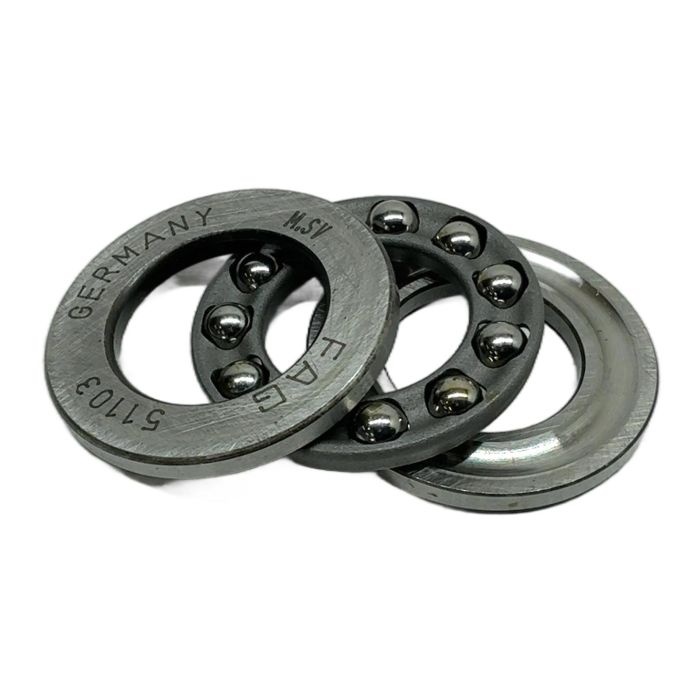

This is a FAG 51103 single direction thrust ball bearing, a precision component engineered for reliability. Made in Germany, it is designed to handle axial loads with high accuracy. The bearing is separable, meaning the shaft washer, housing washer, and ball and cage assembly can be mounted independently, simplifying installation and maintenance. This item is new old stock (NOS), unused and fully functional, but may show signs of long-term storage on its packaging.

Specifications

• Manufacturer: FAG
• Type Number: 51103
• Type: Single Direction Thrust Ball Bearing
• Inner Diameter: 17 mm
• Outer Diameter: 30 mm
• Height: 9 mm

Label Info

• Manufacturer: FAG
• Type: 51103
• Origin: Germany

Application

Ideal for applications that involve exclusively axial loads, such as in machine tool spindles, jacks, and automotive clutches.

Country of Origin

Manufactured in Germany.

CO2 Impact

By purchasing this reconditioned bearing, you are saving approximately 0.07 kg of CO2 compared to a new production. This is a small but meaningful contribution to reducing industrial waste and promoting a circular economy.

Availability

This is a New Old Stock (NOS) item. The product is new and unused, but the original packaging is damaged. Order now from PLC2Day for expert support and fast delivery.

FAQ

What are the main applications for a single direction thrust bearing like the FAG 51103?

It is primarily used in applications that must support heavy axial loads in one direction, such as vertical shaft supports, machine tool tables, and screw jacks. It ensures smooth rotation under thrust.

The separable design allows for easier and more convenient mounting. The shaft and housing washers can be installed independently of the ball and cage assembly, which simplifies the assembly process, especially in tight spaces.

No, this bearing is designed exclusively for axial (thrust) loads. Applying radial loads can cause premature failure and damage to the bearing and the machinery.
