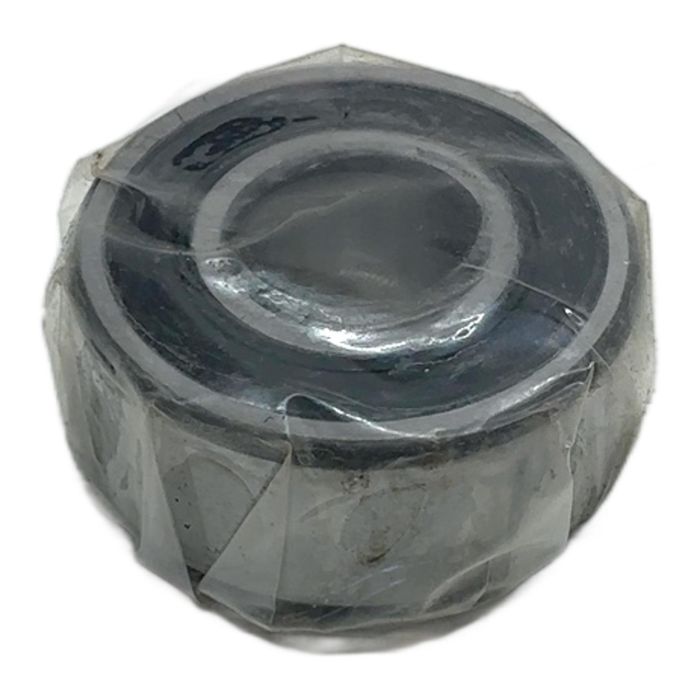

FAG 3204B.2RSR.TVH Double Row Angular Contact Ball Bearing

Description

The FAG 3204B.2RSR.TVH is a high-quality double row angular contact ball bearing designed for robust performance in various industrial applications. It is capable of accommodating high radial loads and axial loads in both directions, making it a rigid and reliable bearing solution. This unit is new old stock, in its original packaging, and ready for deployment.

Specifications

• Manufacturer: FAG
• Part Number: 3204B.2RSR.TVH
• Type: Double Row Angular Contact Ball Bearing
• Bore Diameter (d): 20 mm
• Outer Diameter (D): 47 mm
• Width (B): 20.6 mm
• Seals: 2RSR - Contact seals on both sides
• Cage Material: TVH - Glass fibre reinforced polyamide 66
• Contact Angle: 30 degrees

Label Info

• EAN: 4012801009560

Application

This bearing is suitable for use in pumps, compressors, automotive transmissions, agricultural machinery, and other applications requiring high-capacity load support and rigidity in a compact space.

Country of Origin

Made in Italy.

CO2 Impact

By purchasing this pre-owned bearing, you are contributing to a circular economy and have helped avoid approximately 0.3 kg of CO2 emissions associated with the production of a new unit.

Availability

This item is in stock and available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

'B' indicates a modified internal construction with a 30-degree contact angle for higher axial load capacity. '2RSR' means it has contact seals made of nitrile butadiene rubber (NBR) on both sides for protection against contaminants and grease retention. 'TVH' refers to the cage, which is a snap-type cage made from glass fibre reinforced polyamide 66.

The TVH polyamide cage is lightweight and allows for high speeds. However, the 2RSR contact seals generate more friction and heat than non-contact shields (2Z) or open bearings. It is suitable for moderate to high speeds, but for very high-speed applications, refer to the manufacturer's speed rating limits and consider lubrication type.

Yes, as a double-row angular contact ball bearing, it is specifically designed to accommodate combined loads. It can handle radial loads as well as axial loads in both directions, making it a versatile solution for applications like pumps, compressors, and gearboxes.
