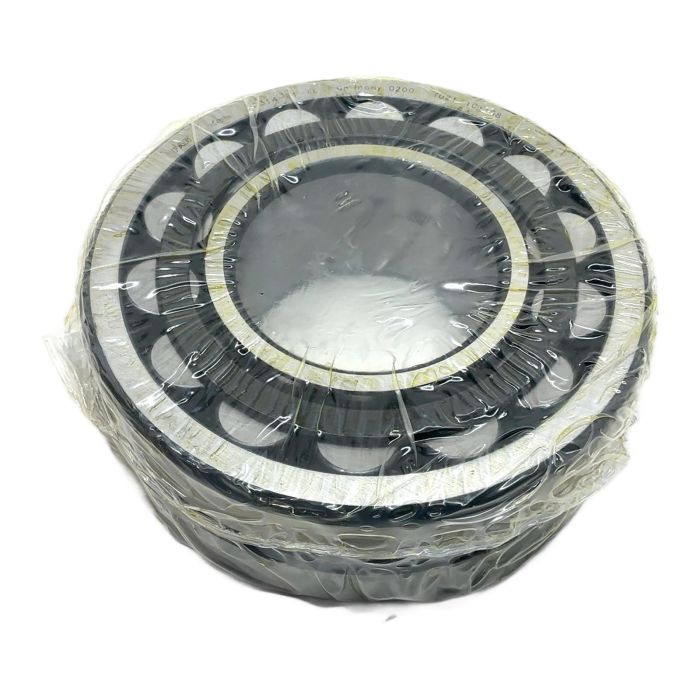

FAG 22314-E1-XL Spherical Roller Bearing

Description

This FAG 22314-E1-XL is a high-capacity spherical roller bearing, part of the premium X-life series. It is engineered to handle very high radial and axial loads in applications prone to misalignment or shaft deflections. Manufactured in Germany, it represents the highest quality in rolling bearing technology, ensuring reliability and extended service life in demanding industrial environments.

Specifications

• Manufacturer: FAG
• Type: 22314-E1-XL
• Dimensions: 70x150x51 mm
• Inner Diameter: 70 mm
• Outer Diameter: 150 mm
• Width: 51 mm
• Cage Type: E1 (Steel Cage)
• Bore Type: Cylindrical
• Series: X-life
• Weight: Approx. 4.67 kg

Label Info

• Part Number: 6822314
• EAN: 4026677808486

Application

Ideal for use in heavy industrial equipment such as gearboxes, wind turbines, continuous casting machines, pumps, conveyors, and mining equipment where high loads and potential misalignment are factors.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component saves approximately 9.34 kg of CO2 compared to manufacturing a new one, supporting sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'E1' denotes a single-piece steel cage, which provides high strength and rigidity. The 'XL' stands for 'X-life', FAG's seal for bearings with optimized internal geometry, improved surface quality, and higher-performance materials. This results in a significantly higher dynamic load rating and a longer service life compared to standard bearings.

While the 22314-E1-XL is designed primarily for high radial loads and misalignment, its performance at speed depends on the lubrication method (grease or oil), cooling, and precision of the housing and shaft. The limiting speed with grease lubrication is typically around 2,400 RPM. For higher speeds, oil lubrication and careful thermal management are required. Always consult the FAG technical datasheet for specific application limits.

A cylindrical bore bearing like the 22314-E1-XL requires a press fit onto the shaft. It is crucial to use a bearing heater (induction heater) to expand the inner ring before mounting to avoid damaging the raceways and rollers. Never use a hammer or direct force on the cage or rollers. Ensure the shaft seating is clean, dimensionally accurate, and lightly oiled before mounting.
