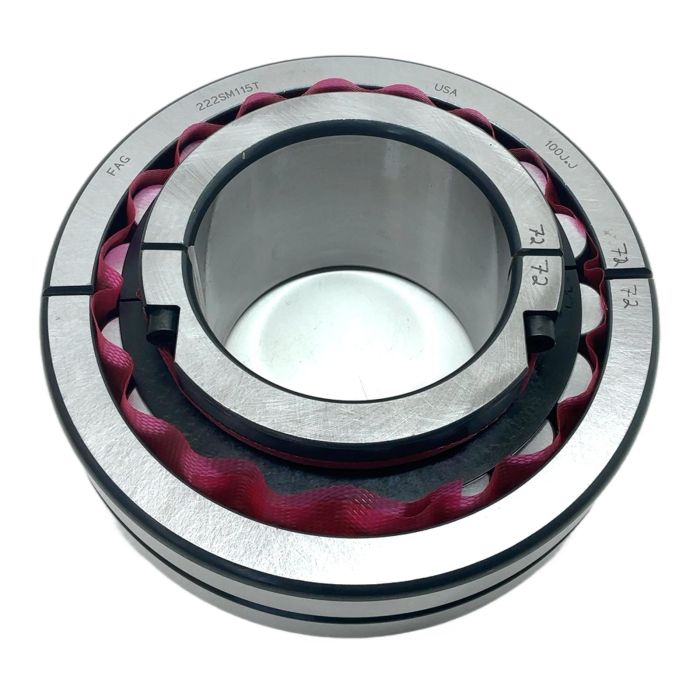

FAG 222SM115T Split Spherical Roller Bearing

Description

The FAG 222SM115T is a high-precision split spherical roller bearing designed for applications where bearing replacement is challenging. Its split construction allows for installation without the need to dismount adjacent components, saving valuable time and reducing maintenance costs. This bearing can accommodate misalignment and heavy loads, making it a reliable choice for heavy industrial machinery.

Specifications

• Manufacturer: FAG
• Model: 222SM115T
• Type: Split Spherical Roller Bearing
• Bore Diameter: 115 mm
• Outside Diameter: 210 mm
• Width: 53 mm
• Cage: Roller-guiding solid brass cage

Label Info

• Part Number: 222SM115T
• EAN: 4012801478816

Application

Ideal for use in conveyor systems, ventilation systems, continuous casting machines, and other equipment where bearing locations are difficult to access.

Country of Origin

Made in the USA.

CO2 Impact

By choosing this new surplus item, you avoid the production of a new one, saving an estimated 16.7 kg of CO2 - a significant contribution to sustainable operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The primary advantage is ease of installation and maintenance. The split design allows the bearing to be mounted on a shaft without having to remove other components, which is ideal for "trapped" locations like between a gearbox and a drive motor. This significantly reduces downtime and labor costs.

It is critical to follow the manufacturer's mounting instructions included with the bearing. The screws on the housing and shaft clamping rings must be tightened sequentially and in a crisscross pattern to the specified torque value using a torque wrench. The included Loctite 242 should be applied to the screw threads to prevent them from loosening due to vibration.

The standard FAG 222SM115T with its brass cage is dimensionally stabilized for operating temperatures up to 200 deg Celsius (392 deg Fahrenheit). However, the limiting factor is often the lubricant. Always ensure the selected grease or oil is suitable for the specific operating temperature range of your application.
