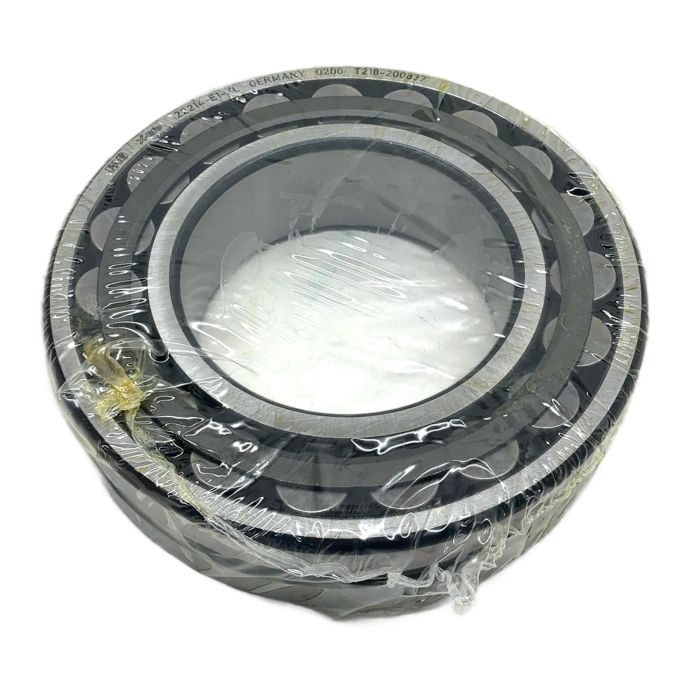

FAG 22214-E1-XL Spherical Roller Bearing

Description

The FAG 22214-E1-XL is a high-capacity spherical roller bearing designed for reliability in harsh industrial environments. As part of FAG's premium X-life series, it offers a significantly higher dynamic load rating and longer service life compared to conventional bearings. Its self-aligning capability allows it to compensate for shaft deflection and misalignment, ensuring smooth operation. Manufactured in Germany, this bearing represents the highest standards of quality and performance.

Specifications

• Manufacturer: FAG
• Part Number: 22214-E1-XL
• Type: Spherical Roller Bearing
• Bore Diameter (d): 70 mm
• Outside Diameter (D): 125 mm
• Width (B): 31 mm
• Cage Material: Pressed Steel (E1 Suffix)
• Design: X-life for enhanced performance
• Bore Type: Cylindrical

Label Info

• EAN: 4026677807007
• Model: 22214-E1-XL
• Internal ID: 52392856 / 6822214

Application

This bearing is ideal for use in heavy-duty applications such as industrial gearboxes, paper processing machines, continuous casters, vibratory screens, and construction equipment where high loads and potential misalignment are present.

Country of Origin

Made in Germany.

CO2 Impact

Reusing this bearing avoids the production of a new one, saving an estimated 3.4 kg of CO2. This is comparable to the emissions from a 17 km car journey.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'E1-XL' suffix signify in the FAG 22214-E1-XL bearing?

The 'E1' denotes a pressed steel cage, which is standard for this series. The 'XL' stands for 'X-life', FAG's quality seal for premium products with higher dynamic load ratings and a significantly longer service life compared to standard bearings, achieved through optimized geometry and improved surface finishes.

Yes, absolutely. Spherical roller bearings like the 22214 are specifically designed to accommodate heavy radial loads and are self-aligning. They can tolerate significant angular misalignment between the shaft and housing, making them ideal for machinery where shaft deflection or mounting errors are expected.

This bearing can be lubricated with either grease or oil. The choice depends on the operating speed, load, and temperature of the application. For most general industrial applications, a high-quality lithium-based grease with an EP (Extreme Pressure) additive is suitable. For high-speed or high-temperature operations, oil lubrication via a circulation system may be necessary. Always consult the machine manufacturer's maintenance manual for specific recommendations.
