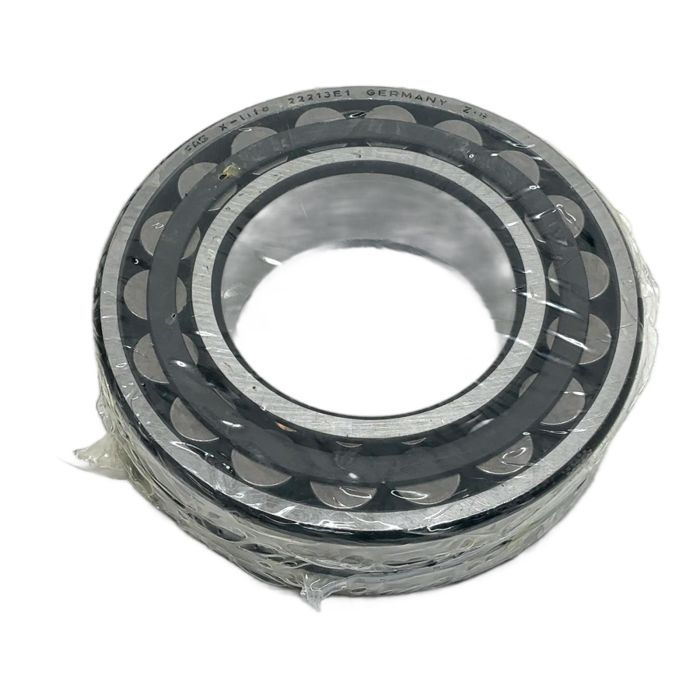

FAG 22213E1 X-life Spherical Roller Bearing

Description

The FAG 22213E1 X-life is a premium spherical roller bearing engineered for high-load capacity and long service life. Its robust design allows it to accommodate misalignment and heavy radial and axial loads in both directions. The X-life quality ensures superior performance, reliability, and cost-effectiveness in demanding industrial environments.

Specifications

• Inner Diameter (Bore): 65 mm
• Outer Diameter: 120 mm
• Width: 31 mm
• Cage Material: Stamped Steel
• Bore Type: Cylindrical
• Design: E1, X-life for enhanced performance
• Lubrication: Annular groove and three lubrication holes in the outer ring

Label Info

• Manufacturer: FAG
• Model: 22213E1 X-life
• EAN: 4026677805072

Application

This bearing is suitable for a wide range of applications, including gearboxes, wind turbines, continuous casting machines, pumps, conveyors, and other heavy industrial machinery where reliability is critical.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this surplus bearing over a new one saves approximately 3.14 kg of CO2, contributing to a more sustainable industrial practice. This is comparable to the emissions of driving a standard passenger car for 15 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'E1' suffix signify on this FAG bearing?
The 'E1' suffix indicates an optimized internal design featuring enhanced roller geometry and surface finish, which results in a significantly higher dynamic load rating and longer service life compared to standard designs.

Is the 65mm bore size standard for the 22213 series?
Yes, for this bearing series, the last two digits of the model number ('13') are multiplied by 5 to determine the bore diameter in millimeters (13 x 5 = 65 mm).

What are the lubrication requirements for the 22213E1 X-life bearing?
It requires grease or oil lubrication. The specific type and viscosity depend on operating conditions like speed, load, and temperature. The bearing features a standard lubrication groove and holes in the outer ring to facilitate effective relubrication.
