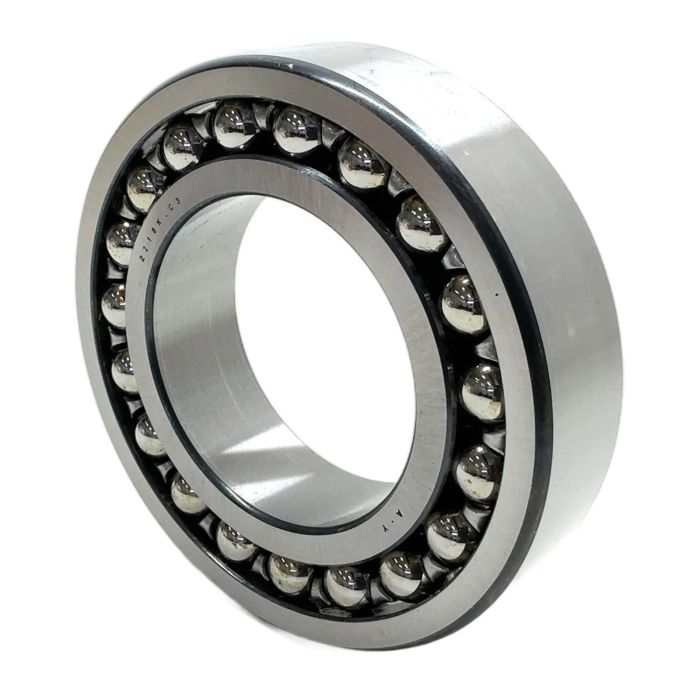

FAG 2218K C3 Self-Aligning Ball Bearing

Description

This FAG 2218K C3 is a premium self-aligning ball bearing designed for applications where shaft deflection or mounting misalignments are expected. Its dual-row design and sphered outer ring raceway allow it to operate smoothly even with angular misalignments. The tapered bore facilitates easy mounting using an adapter sleeve. This bearing is New Old Stock (NOS), offering the performance of a new part.

Specifications

• Manufacturer: FAG
• Model: 2218K C3
• Type: Self-Aligning Ball Bearing
• Bore Diameter: 90 mm
• Outer Diameter: 160 mm
• Width: 40 mm
• Bore: Tapered (K) 1:12
• Internal Clearance: C3 (Greater than Normal)
• Weight: Approximately 3.4 kg

Label Info

• Brand: FAG
• Part Number: 2218K C3
• Origin: SWITZERLAND

Application

Ideal for use in agricultural machinery, fans, conveyor systems, and industrial transmissions where precision and tolerance for misalignment are critical.

Country of Origin

Manufactured in Switzerland.

CO2 Impact

By purchasing this reused bearing, you are avoiding approximately 6.8 kg of CO2 emissions associated with the production of a new one.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'K' suffix indicates that the bearing has a tapered bore with a taper of 1:12. This design requires mounting on a shaft using an adapter sleeve (e.g., H318) or on a tapered shaft journal.

The C3 radial internal clearance is greater than the 'Normal' (CN) clearance. This extra space is crucial in applications where there's a significant temperature difference between the inner and outer rings, or in high-speed applications, as it prevents the bearing from seizing due to thermal expansion.

Yes, the sphered raceway in the outer ring allows the inner ring, balls, and cage to rotate freely and align themselves relative to the outer ring. It can compensate for initial static misalignment from mounting errors as well as dynamic misalignment that occurs during operation.
