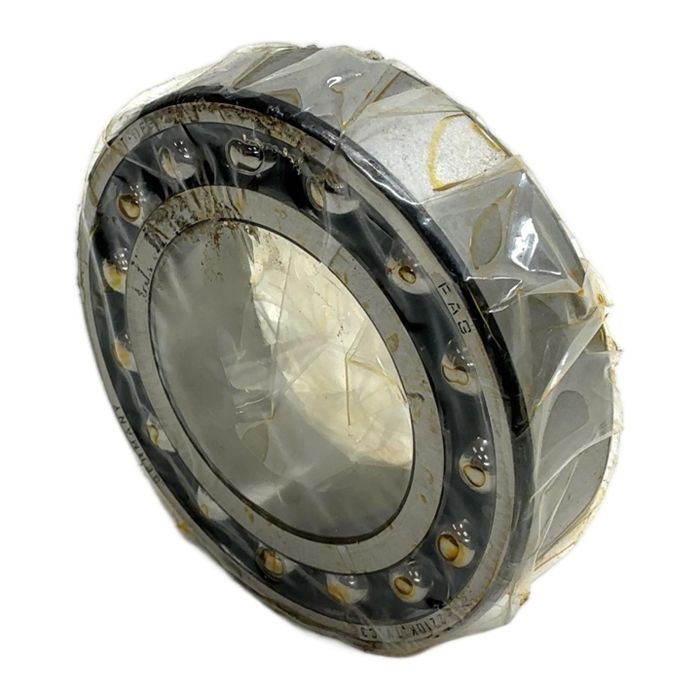

FAG Self-Aligning Ball Bearing 2210K.TV.C3

Description

The FAG 2210K.TV.C3 is a high-quality self-aligning ball bearing designed to perform reliably in applications where shaft deflection or housing misalignment is expected. Its double-row design and sphered outer ring raceway allow it to operate smoothly even with angular misalignments. This model is ideal for various industrial machinery, ensuring longevity and reduced maintenance.

Specifications

• Inner Diameter (d): 50 mm
• Outer Diameter (D): 90 mm
• Width (B): 23 mm
• Bore Type: Tapered (1:12), designated by 'K'
• Cage Material: Glass fibre reinforced polyamide 66, designated by 'TV'
• Internal Clearance: C3 (Greater than normal)

Label Info

• Manufacturer: FAG
• Type: 2210K.TV.C3
• EAN: 012801160513

Application

Suitable for a wide range of applications including agricultural machinery, conveyor systems, fans, and general industrial equipment where static and dynamic misalignments occur.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this reused FAG bearing saves approximately 1.22 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions from driving a standard car for over 6 kilometers.

Availability

This product is available as New Old Stock (NOS). It is an unused item from previous inventory, offering the performance of a new part with immediate availability. The original box may show signs of shelf wear. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the 'K' suffix in 2210K.TV.C3?
The 'K' indicates that the bearing has a tapered bore with a standard taper of 1:12. This design allows for mounting on a cylindrical or tapered shaft using an adapter sleeve or withdrawal sleeve, providing a secure and precise fit.

What does the 'C3' clearance mean and why is it important?
'C3' denotes a radial internal clearance that is greater than the 'Normal' (CN) clearance. This extra space is crucial in applications where there might be a tight interference fit on the shaft or in the housing, or where significant temperature differences between the inner and outer rings can cause thermal expansion.

What are the advantages of the 'TV' (polyamide) cage?
The 'TV' suffix indicates a cage made from glass fibre reinforced polyamide. This material offers low weight, good sliding properties, low friction, and allows for higher running speeds compared to steel cages. However, its operating temperature is typically limited to around 120 deg C.
